PC to TV Converter with Audio LKV3000

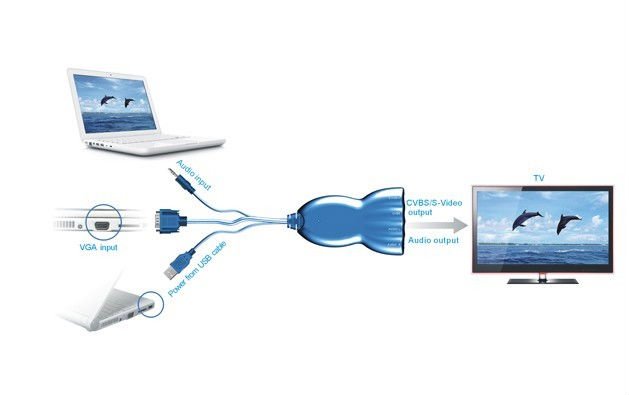

LKV3000 PC to TV Converter converts VGA to composite (Yellow RCA) and/or S-video TV display signal, and is with audio output. It combines all cables that go to the PC are combined in one single break-out cable to get rid of disorder of cables thus saves the need to route a seperate cable from your PC to the TV to handle audio. It is with cute looking and definitely can attract more eyes.

Features :

• VGA resolution: 640 X 480 (60/75Hz), 800 X 600 (60/75Hz), 1024 X 768 (60/75Hz), 1280 X 768 (60HZ), 1280 X 1024 (60HZ);
• Output signal: CVBS (1.0Vpp), S-Video (Y: 1.0Vpp, C: 003Vpp)
• 1 Input: 1 X VGA, 1 x 3.5mm audio
• 3 Outputs: 1 X -Composite Video, 1 X S-video, 1 x R/L Audio-Output signal impedance: 75Ω;
• Power: DC 5V 1A (it is powered from USB port and no extra power supply is needed)
• Working Temperature: 25~75°C
• Working Humidity: 10% ~ 65%
• Color : Blue
• Converter Size: 125 X 75 X 25 mm

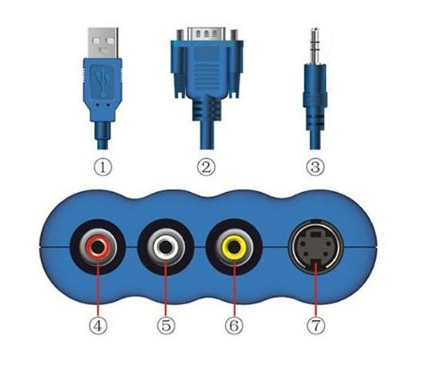

Connections :

• 1. USB Power
• 2. VGA Input
• 3. PC Audio Input
• 4. Audio R  Ouptut
• 5. Audio L Output
• 6. Composite Video Output
• 7. S-Video Output

Package Content :

• 1 x LKV3000 attaching with with USB, VGA & Audio Cable
• 1 x AV cable
• 1 x S-Video cable

(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)
