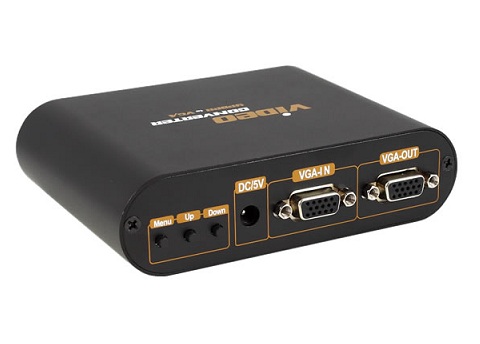

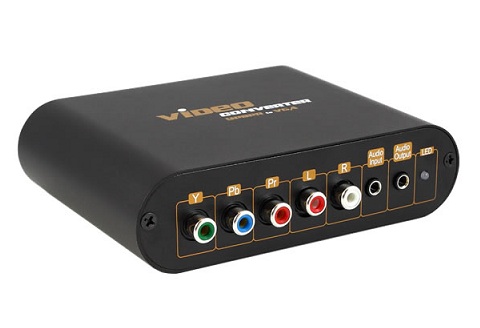

Component Video to VGA Converter LKV7600

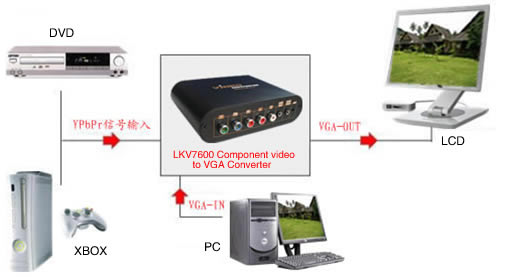

This product converts Component video to VGA, allowing connection of X-Box, Wii, Apple TV, Vudu Box, or Netflix Roku Player to a computer monitor, projector, or other display that supports VGA. It is plug and play and with portable size.

Features:

• Input: 1 X VGA, 1 X Component Video (Y-Pb-Pr), 1 X Stereo Audio;
• Output: 1 X VGA, 1 X Audio
• Output Resolution is optional. Select on the OSD menu
• VGA Resolution: 640 X 480; 800 X 600; 1024 X 768; 1440 X 900; 1400 X 1050, 1600 X 1200; 1680 X 1050; 1920 X 1200; 1280 X 768
• Component Video Resolution supported: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p(50Hz/60Hz); -Brightness, contrast, saturation, hue are adjustable
• Both PC and MAC Computer are supported
• Size:12.8×9.4Cm×3.4(W) cm
• Power adaptor: DC5V/1A.

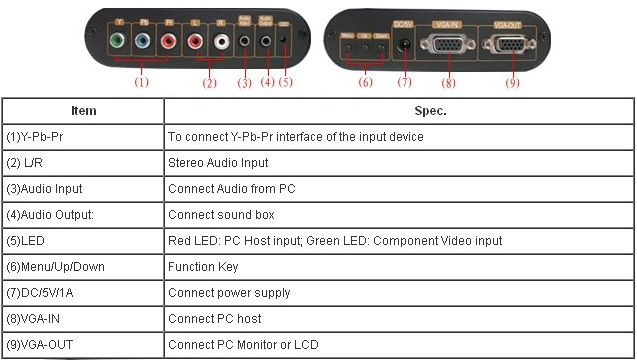

Connections :

• 1) Y-Pb-Pr: To connect Y-Pb-Pr interface of the input device
• 2) L/R: Stereo Audio Input
• 3) Audio Input: Connect Audio from PC
• 4) Audio Output: Connect sound box
• 5) LED: Red LED: PC Host input; Green LED: Component Video input
• 6) Menu/Up/Down: Function Key
• 7) DC/5V/1A: Connect power supply
• 8)VGA-IN: Connect PC host
• 9)VGA-OUT: Connect PC Monitor or LCD

Package Content :

• 1 x Component Video to VGA Converter LKV7600
• 1 x YPbPr cable
• 1 x Audio cable
• 1 x Power supply unit
• 1 x Manual

(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)
