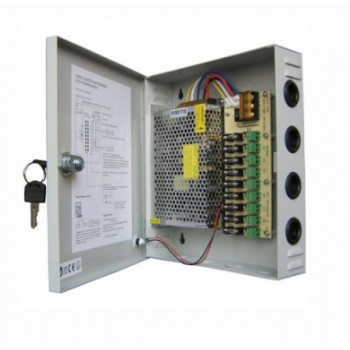

12V 9-Way CCTV Power Box / Power Supply Distribution Panel (12V 10A)

This 9 ways power supply panel is specially designed for CCTV scurity system installers. Power supply panels for up to 9 cameras offer a more professional alternative to individual power adapters, , allowing you to consolidate Camera Power in a central location. The most special feature is that each outlet is individually fused protected, with LED indicators. Additionally, this is a 12V DC 9 cameras panel, 9 ports power supply comes with a locker & keys.

Features:

• 12V DC power supply distribution box, 9 channel outputs
• With locker
• Individual LED power indication
• Individual output protection with Fuse
• Input voltage: 85～264VAC/47～63Hz
• Output voltage: 12VDC
• Output current: 10A
• Output power: 120W
• Overload Protection : 105%～200%
• Auto Recover
• OverVoltage Protection : 115%～135%
• Short Circuit Protection : Auto Recover
• Working Environment : —10℃～50℃；20%～90%RH
• Safety standard : Design reference EN/UL60950EMC Standard : Design reference EN55022 Class B; EN61000-4-2/-3/-4/-5/-6/-11
• Size :  205 X 234 X 50mm

Package Content:

• 1 x 12V 9-Way CCTV Power Supply Distribution Panel (12V 10A)
• 2 x Keys
• 1 x Set of Screw

(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)
