Too many different models of notebook and only need 1 Universal tpye of PSU for all of them. This is the solution : Smart Automatic 2-in-1 Universal Laptop Power Supply Adapter. It is a smart PSU which can do Automatic Switch Output Voltage for different Laptop PC, and you do not worry about plugging in a wrong PSU.
Features:
- Universal Laptop AC/DC Adapter suitable for almost all branded Notebook/laptop in the market
- 2 in 1 : Home AC / Car DCAC Input: AC100-240V 1.5A 50-60Hz
- Automatic Switch Output Voltage for different Laptop PC (no need selector switch)
- DC Input Voltage:DC12V (DC10—14V) 10A
- Output Voltage:DC15-DC24V: Automatic adjustment (no need selector switch) : Smart/Intelligent identify and adjust the output voltage/current according to different connectors and different laptop.
- Output Current Max.: 4.5Amp
- Come with Connectors: 8 pcs different standard adapter connectors for different laptop, built in IC.
- Continuous Output Power: 90W
- Peak Power:180W
- Also equip additional USB Port: DC5V-1000mAh
- Approx Size: 51 X 39 X 38cm
Fit for Models List :
|
DC Connector
|
Output Voltage
|
Voltage Range
|
Output Current
|
Size
|
Compatible With
|
|
M1
|
15V
|
14.0-16.2V
|
4.5A
|
6.3*3.0
|
TOSHIBA: 15V/3A, 15V/4A, 15V/4.5A, 15V/4.5A
NEC: 15V/4.5A |
|
M2
|
16V
|
15.0-17.2V
|
4.4A
|
5.5*2.5
|
IBM: 16V/2.2A, 16V/3.36A, 16V/3.5A, 16V/4.4A
|
|
M3
|
16V
|
17-17.2B
|
4.4A
|
6.0*1.0
|
SONY16V/3.16V/3.75V/4A
|
|
M4
|
19V
|
18.0-20.2V
|
3.8A
|
4.8*1.7 |
HP/COMPAQ:18.5V/2.7A,18.5V/3.5A,18.5V/3.8A, 18.5V/3.8A
DELTA: 19V/2.64A
ASUS: 19V/2.64A NEC: 19V/2.64A
|
|
M5
|
19V
|
18.0-20.2V
|
3.8A
|
5.5*2.5 |
IBM: 19V/4.2A
DELL: 19V/3.16A, 19V/3.42A COMPAQ/HP: 18.5V/3.8A, 19V/3.8A DELTA: 19V/2.64A TOSHIBA: 19V/3.16A, 19V/3.42A, 19V/3.8A ASUS: 19V/3.8A,
LS:20V/3.25A LITEON: 19V/3.16A,19V/3.42A, 19V/3.8A, 19V/3.8A
NEC: 19V/2.64A,19V/3.16A GATEWAY:19V/3.16A,19V/3.42A,19V/3.68A, 19V/3.8A
|
|
M6
|
19V
|
18-20.2BV
|
3.7A
|
5.0*0.8
|
Samsung19V/3.16A/3.7A
|
|
M7
|
19V
|
18.0-20.2V
|
3.8A
|
5.5*2.1
|
TOSHIBA: 19V/3.8A,
ACER: 19V/3.42A DELTA:20V/3.5A |
|
M8
|
19.5V
|
18-20.2V
|
3.6A
|
6.0*1.0
|
SONY 19.5V/2.7A/3A/3.6A
Fujitgu19.5V/3.16A/3.6A
|
|
M9
|
19.5V
|
18.5-20.7V
|
3.6A
|
7.4*5.0
|
DELL: 19.5V/3.34A, 19.5V/3.62A (Optional)
|
|
M12
|
18.5V
|
17.5-19.7V
|
3.6A
|
7.4*5.0
|
HP:18.5V/3.8A (Optional)
|

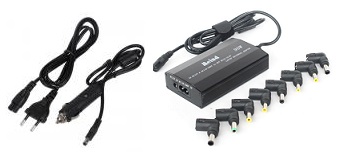

Package Content:
- 1 x 90W Smart Automatic 2-in-1 Universal Laptop Power Supply Adapter
- 1 x AC Cord
- 1 x DC 12V Car Charger Cable
- 8 X Various Type of Notebook Connector
(Note : Photo attached is for reference only, it may be slightly varied in items of colour, markings from the actual item delivered from time to time)
