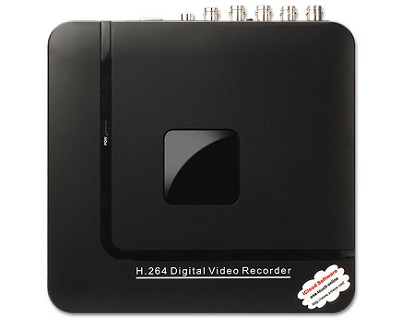

H.264DVR Digital Video Recorder 8 Channel

This 8-channel DVR is designed specially for security and defense field which makes this an outstanding digital surveillance product. It has a strong network service that greatly enhances the network data transmission capacity and remote control capabilities. It introduces an embedded LINUX operating system which offers a more stable performance. It adopts a standard H.264 video compressed format and G.711A audio compressed format which insures high quality images and low error coding ratio.

This outstanding aperance simple design, complete with a button-less fascia which can be completely controlled either by the mouse, makes it easy to be operated. Easy to install, get 1 installed with DIY for your new office as well as your home security add-ons.

Features:

• One-Touch Online Function (P2P) - 1 step go into internet
• Two recording and playback modes selectable (can be changed any time):
  Mode 1:
  - Recording: 2 channel D1 + 6 channels CIF (Real-time)
  - Playback: 2 channel D1 + 6 channels CIF
  Mode 2:
  - Recording: 8 channels CIF (Real-time)
  - Playback: 8 channels CIF
• With VGA and BNC output
• Support 1 piece of SATA HDD, maximum capacity is 3TB
• H.264 High profile compression algorithm ideal for standalone DVR
• This outstanding aperance simple design
• Button-less fascia which can be completely controlled either by the mouse
• Support 2 x USB 2.0 port for mouse, backup, upgrade etc...
• USB record backup and network backup
• Video BNC (8ch video input), Audio RCA (1ch audio input, 1ch audio output)
• Support VGA and HDMI output at the same time

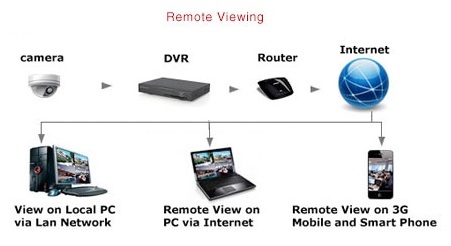

• Support Network and mobile remotely monitoring such as iPhone, Blackberry, Android, Symbian and Windows mobile
• Support Powerful Network service (DHCP / PPPOE / FTP / DNS / DDNS /NTP / UPNP / EMAIL / IP right / IP search / ALARM CENTER etc...) WEB, mobile CMS, SDK..
• With the sound system for the protection circuit, unique triple watchdog function, the unit uses very low power consumption to ensure the equipment never be hang up
• With the unique black box technology, can monitor the whole run process of the equipment, can greatly reduce the maintenance costs
• Support Apple iPhone application "Cloud" one-touch online, you can this app with your iPhone or Andriod phone and access to view live and control live video streams from your cameras and DVRs (*** Please note that it might be a paid app (NOT free to download)).

HDD Capacity Calculations:

The hard disk capacity formula is:
Overall Capability (M) = Channel Number x Time (in hours) x Capability in an hour (M/hour)

The recording time formula is:
Recording Time (hour) = Overall Capability (M) / [ Capability in an hour (M/hour) x Channel Number ]

Example:
For one piece of 1000GB HDD, real time CIF for recording, it will keep recording for about 26 days.
HDD spaces per channel is 200M/H, if 8 channels real time CIF at 24 hours recording uninterrupted, it can last
1000G / (200M/H x 24 hours x 8 channels) = approximately 26 days

Note: This item does NOT include a hard disk.

Technical Information:

FAQ - Frequently Asked Questions:
Q: What is One-Touch Online function?
A: This is a convenient software that allow you to get the DVR online with just entering the serial number of the DVR. You will not need to enter your network IP address or making any setting on your internet router. All you need is plugging the LAN cable into the DVR and that's it. Please note that you must be login at the following site (E-Touch iCloud) using Internet Explorer: http://www.xmeye.net
Besides, it is very important that the software can ONLY support Internet Explorer at the moment; other internet browsers might be supported in the future.

Q: Where can I find the serial number of the DVR?
A: In the DVR, please go to: Main Menu --> INFO --> VERSION --> Serial No.

Q: Which app should I use in my mobile / smart phone?
A: Please search for the app "vMEyeCloud" on Apple Apps Store or Android Play Store. Please note that it might be a paid app (NOT free to download). At the moment, it is free in Android Play Store and is selling for US $1 in Apple App Store (the price might change).

Q: Can I playback the recorded videos remotely?
A: Yes, you can do the playback directly from your computer (via E-Touch iCloud site) or mobile phone (via vMEyeCloud).
For remote playback, please note that you can see the recorded video for 1 of the channels ONLY, but NOT all channels at the same time.

Q: To keep the internet connection stable, do I need a static or fixed IP, or a DDNS account?
A: No, you do not need a static IP or a DDNS account. As long as you have an internet connection, you can just plug the LAN cable to the DVR and get it online. Even if your IP address is keep changing, the connection will still be stable.

Q: I cannot see the page properly on the E-Touch iCloud site, why is that?
A: When you go to the E-Touch iCloud site for the first time, you need to download the Active X first. Please press the "Enter Guide" to the next page, then press the "Download Install" button to download and install that Active X. You cannot view the E-Touch iCloud page properly if you do not install it. Please click here to download the quick installation menu for the E-Touch iCloud site.

Q: Does this DVR support snapshot and email functions?
A: Yes. Please click here to see the instruction manual for Snapshot and Email Settings.

Q: What kind of hard disk (HDD) should I use?
A: Basically, you should use a 3.5" SATA HDD, and one HDD can be installed inside this 8-Channel DVR.
The maximum supported capacity of each HDD is 3TB (3000GB).

Package Content:

• 1 x 8-Channel DVR with One-Touch Online (P2P) function
• 1 x USB Mouse
• 1 x User Maunal
• 1 x set of Screw
• 1 x Power Adaptor

(Note 1 : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time

Note 2 : HDD is not included in the package)
