This CP series finds a balance between price and quality. The price is competitive and the quality is reliable. You just pay for it. In addition, we’ve included a variety of industrial-grade protective circuitries: OCP (Over Current Protection), OPP (Over Power Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection).
|
Input
|
Voltage
|
230VAC (180-264VAC) (8cm fan) |
||||
|
Rated
250W
Peak
350W
|
Voltage
|
+12V
|
+5V
|
+3.3V
|
-12V
|
+5VSB
|
|
Max. Load
|
19.0A
|
15.0A
|
21.0A
|
0.5A
|
2.5A
|
|
|
Min. Load
|
0.6A
|
0.2A
|
0.1A
|
0.0A
|
0.0A
|
|
|
Regulation
|
±5%
|
±5%
|
±5%
|
±10%
|
±5%
|
|
|
Ripple & Noise
|
120mV
|
50mV
|
50mV
|
120mV
|
50mV
|
|
|
|
Dimension
|
150x86x140mm(WxHxL),8cm Fan
|
||||
|
PFC
|
without
|
|||||
Features:
- Brand by Huntkey
- Complies with ATX12V V2.3
- High efficiency
- Supports Intel & AMD Dual Core CPUs
- Magnetic amplifier technique
- 100% Hi-pot test
- 100% Burn-in test
- MTBF≥50,000 hours at 25 DegC
- Max Power (watt) : 350W
- 8cm Fan
- Connectors :
- 20 + 4 pin main power
- 2x SATA separate cable
- 1x 4Pin CPU
- 1x 4Pin Floppy
- 4x Molex/IDE 4Pin
- Size : 150x86x140mm(WxHxL)
Package Content:

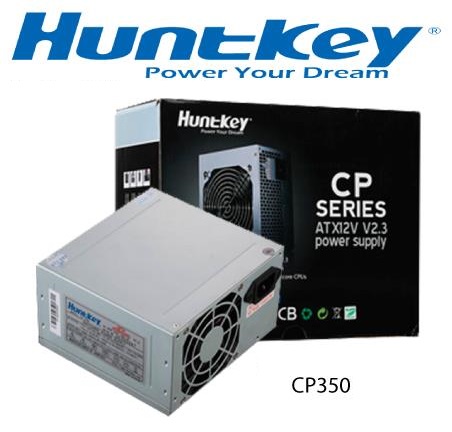

- 1 x Huntkey Desktop Computer Power Supply CP Series CP-350
- 1 X AC Power Cords
(Note : Photo attached is for reference only, it may be slightly varied in items of colour, markings from the actual item delivered from time to time)
Click here for other Huntkey model : CP-400HP
