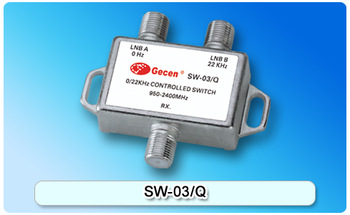

Gecen 22KHz Tone Switch Controlled Switch for Satellite Dish SW-03

0/22KHz signal after the professional circuit processing more compatible models. Receiver provides 0/22KHz signal which way to choose a two-way satellite signal. With a coaxial cable to transmit control signals with the satellite signal.

Features:

• Zinc die-cast housing, tin-plated
• Anticorrosive nickel finish
• Light weight and compact size
• Precision machined threads
• Easy installation
• Frequency range :950-2400 (MHz)
• Normal working voltage :12-20 (V)
• Insertion loss: 3 (dB)
• Working current consumption: 10mA
• Isolation: 20 (dB)
• Maximum through current: 500mA
• Reflection loss: 8 (dB) Port impedance:
• Connector: "F" type

Package Content:

• 1 x Gecen 22KHz Tone Switch Controlled Switch
