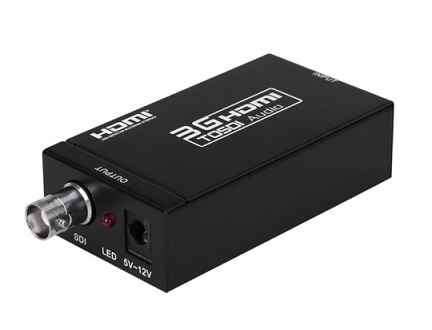

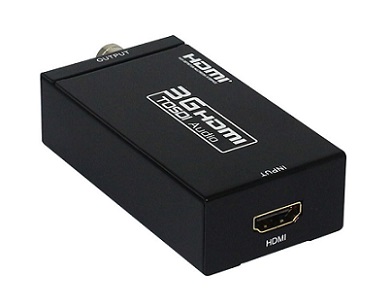

HDMI to SDI Converter

HDMI to SDI Converter is dedicated to convert the one-way HD digital component serial interface (HD-SDI and 3G-SDI) signal into HDMI signal. It integrates SDI receiver and HDMI modulator, it is convenient to convert HD-SDI signal into HDMI signal. Meanwhile it separates the audio signal of SDI, converts the signal then embed the signal into HDMI signal to achieve voice and picture sync transmission.

Features:

• HDMI Input, SDI Output
• Auto detects resolution of HD-SDI, SD-SDI and 3G-SDI
• Support resolutions up to 1080P
• Full HDMI supported with embedded audio
• Plug and play, driverless
• Supports Resolutions: SD 525i, 625i, HD720P@24HZ, 720P@25HZ, 720P@30HZ, 720P@50HZ, 720P@60HZ, HD 1080i@50HZ; 1080i@60HZ; HD 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ,1080P@60HZ
• Auto identification of resolution.
• Audio and picture sync output.
• Simple and convenient installation
• Input interface: 1 x HDMI input interface,
• Output interface: 1 x SDI signal output(1080P/60Hz).
• Power: DC 5V /1A (Malaysia 3pin PSU is included)
• Size : 105 X 59 X 23mm

Package Contents:

• 1 x HDMI to SDI Converter
• 1 x Power Supply
• 1 x Manual

(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)

Click here if you need SDI to HDMI Converter
