Solar charge controllers, also known as solar regulators can regulate the solar panel's charging current to provide the most effective charge to the batteries without overcharging them. They also prevent the batteries from backfeeding into the solar panel at night.

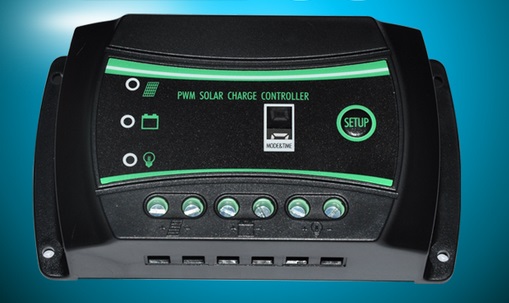

This solar controller is Pulse Width Modulation (PWM) regulation, which is the most effective means to achieve constant voltage battery charging by switching the solar system controller’s power devices. When in PWM regulation, the current from the solar array tapers according to the battery’s condition and recharging needs.
Features :
- 3A for 30Wp solar array, 5A for 60Wp solar array & 10A for 120Wp solar array
- Automatic identification of 12V/24V system voltage.
- LED digital display and single key operations which makes operate simply and conveniently.
- Adopting ternary form charging algorithm, charge the storage battery in equalizing charge mode once a week .It can prevent battery from imbalance and vulcanization effectively, also battery service life will be extended.
- Four working modes which made it convenient to use in all kinds of street lamps and monitoring devices.
- External temperature sensor can realize high-precision temperature compensation.
- Has the electricity protection data function .Parameter can be stored when the power system failure. No need setting again. It is very simple and convenient to use.

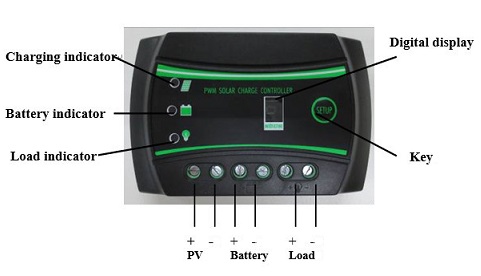

- Various status indications.
- Over charging protection, over discharging protection, over load, short circuit protection, reverse polarity protection
- TVS lightning protection.
- Approx. Size : 125 x 70 x 34mm
- Color : Black
Package Content:
- 1 x Solar Generator
- 1 x Manual
(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)
