Solar Panel 20W Monocrystalline

High Modules Conversion Efficiency, 20w Monocrystalline solar panel charges 12v battery. 20W solar panel suitable for applications for CCTV Cameras, RTU, SCADA, Gate, Traffic Systems and etc...

Features:

• High efficiency module
• Low iron tempered glass
• Suitable for prolonged outdoor use, water proof
• EVA laminate and TPT backsheet heavy duty anodized aluminium frame provides strength and convenient mounting access.
• This protects against moisture penetrating into the module.
• The low profile junction box on the underside allows a flush mounting on a flat surface.
• Output Power (Pm):  20W
• Max Power Voltage (Vmp):  18V
• Max Power Current (Imp):  1.11A
• Open Circuit Voltage (Voc):  21.6V
• Short Circuit Current (ISC):  1.22A
• Max System Voltage : 1000
• VSTC : 1000W/m2, AM1.5
• Size: 645mm x 285mm x 18mm

Package Content:

• 1 x 20W Solar Panel Module

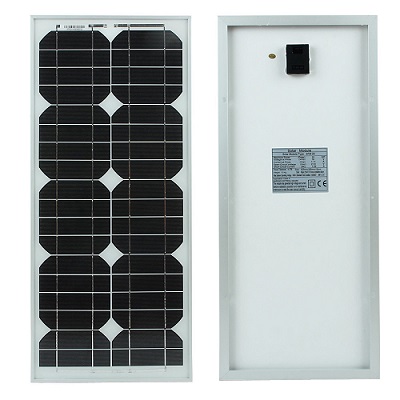

(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)

Suitable to be used with 10A Solar Charge Controller.
