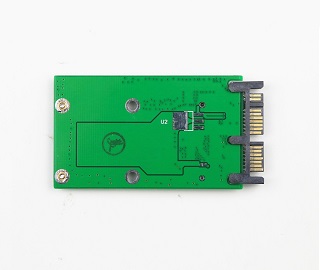

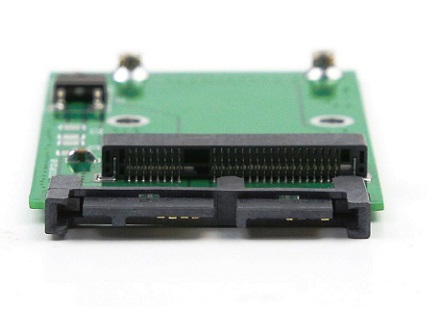

This model Mini PCI-E mSATA 3cmx5cm SSD to 1.8 inch Micro SATA 16Pin Converter board. Akiba-Accessories mSATA SSD to microSATA Adapter, allows user to replace mSATA SSD to microSATA connector, specially for the connection of 1.8 inch SATA 16Pin SSD.
Features:
- Fully compliant with 1.8" micro SATA specification
- Support 3.3 Volt Mini PCI-e SSD (mSATA Module)
- Support Mini PCI-e Connector
- Support INTEL definition interface standard SSD.
- Works with 50mm mSATA SSD of mini pci-e
- Micro SATA input 16Pin (7+7+2pin)
- No capacity limited of the mini-SATA SSD installment
- No need extra power adapter and any drivers .
- Supports DOS, Win98/SE, 2000, Server 2003, XP, Vista, 7, Sever 2008 & Mac OS & Linux.

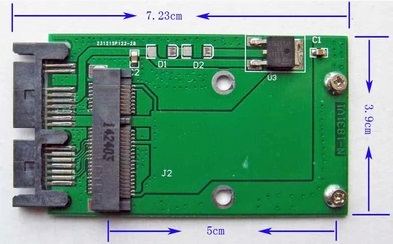

- Approx Size : 7.3 cm x 4.0 cm
Compatible with:
- SAMSUNG PM800 mSATA
- TRANSCEND TRANSCEND mPCIE mSATA
- TOPSSD Mini PCIE mSATA SSD Series mSATA
- INNODISK Innodisk Corp. mSATA J80 SSD mSATA
- RENICE Renice X3 50MM mSATA SSD mSATA
- INTEL Solid-state Drive 310 Series mSATA
- TOSHIBA THNSNB064GMCJ 64G mSATA
- and more
Package Content :
- 1 X 50mm Mini PCI-E mSATA SSD to 1.8 inch Micro SATA Board
(Note 1: Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time
Note 2 : Not compatible with 50mm Mini PCI-e SATA SSD's (mSATA only)
Note 3 : mSATA is not the same thing as 1.8" MICRO SATA. Lead pin of mini pci-e SSD:
- mSATA: commonly used in Lenovo / Thinkpad (INTEL port);
- SATA MINI PCI-E: commonly used in ASUS EPC and tablet PC (ASUS port); This product is not compatible with ASUS EPCS101 900 901A (mPCIe SSD) and airbook SSD
- PATA (IDE): commonly used in DEll MINI 9. Please make sure of the SSD port.
If you are looking for mSATA PCI-e SSD 50mm to 2.5 inch SATA 22Pin converter board Adapter, click CC-5P60
If you are looking for the Adapter for PCI-E mSATA SSD 50MM 3.3V into 1.8inch CE/ZIF PATA 3.3V, click CC-5P66
