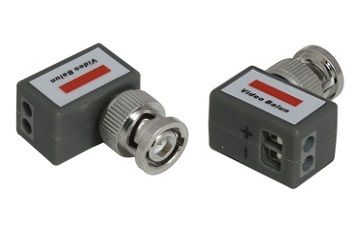

1 Channel L-Angle Passive CCTV UTP Video Balun

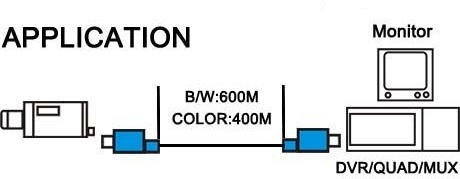

1 Channel Passive Video Balun comes in pairs. This CCTV video balun is a passive transmission device that transmit video signal over unshielded twisted pair wires, point-to-point for distances up to 2000 feet (600 m). It uses Category 5 UTP. It’s easy to install and cost effective, and does not require power.

The compact size and its L angled design allows it to easily fit anywhere that a BNC can fit. It is ideal for mounting directly on virtually all high-density DVRs without any additional cabling. Its crosstalk and noise immunity ensure quality video signals.

Features:

• Full-motion CCTV video at distances up to 330m When used with any passive transceiver
• Outstanding interference rejection, transient protection
• It can work as video transmitter or video receiver
• Compact size and 90 Deg design, resulting easy installation
• CCTV Video Balun supports all video device, such as camera, monitor, DVR card and recorder etc.
• Lower budget, the price of CCTV Video Balun is much less than co-axial cable
• No power required

Package Content :

• 2 x 1 CH RJ45 Balun Video Balun

(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)

Another model of 1CH Balun at promotional price : LS-201E
