Gecen 2x3 2 in Satellite Multiswitch 13V 18V MS-2301

GECEN 2X3 SATELLITE MULTISWITCH (13/18V) LNB Voltage Selected MultiSwitch

Features:

• Zinc die-cast housing, nickel-plated
• Excellent quality component
• Professional circuit design and low loss
• 13/18V supplied by satellite receiver through coaxial cable to switch corresponding port
• Capable of connecting two SATV signals simultaneously, which is switched through 13/18V
• Distributed into three subscribers to use simultaneously and no mutual interference
• Applicable to multi-satellite and multi-receiver usage
• Frequency Range 950-2150(MHz)
• Normal Working Voltage 12-20(V)
• Insertion Loss 5(dB)
• DC Power Consumption 15(mA)
• DC Max Power Passing 500(mA)
• Isolation 25(dB)
• Return Loss 10(dB)
• Impedance(all ports) 75
• Switching Voltage : 13/18V
• Connectors: "F" type female

Package Content :

• 1 x 2 in Multiswitch 13/18V Gecen MS2301

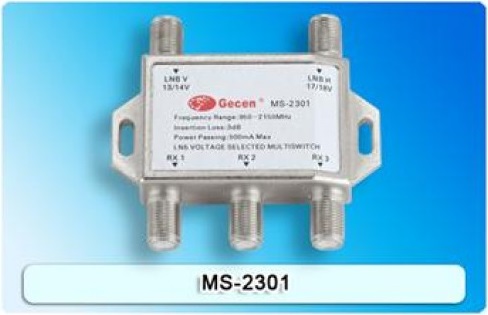

(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)

We also carry MS-2401A, MS-2201
