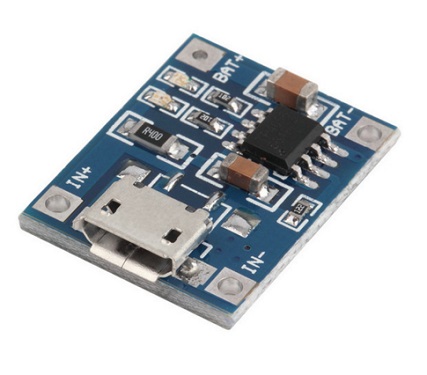

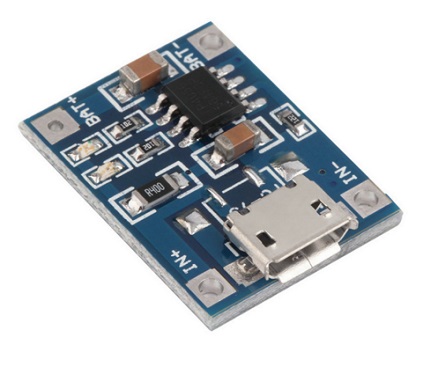

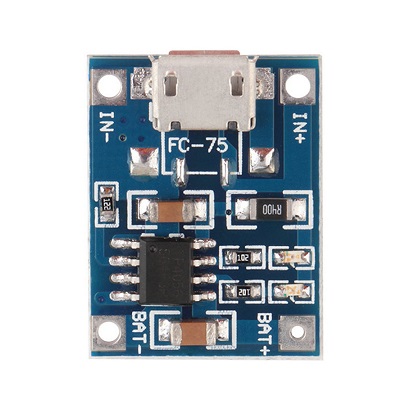

TP4056 1A Battery Charger Module PCB Board Micro USB

This is a 3.7V lithium battery charger module based on TP1056 with Micro USB interface.It is small size and light weight, especially for a single lithium battery charging.

Features:

• This TP4056 specification charger board allows user to charge battery using either a Micro USB connector at 4.5V - 5.5V input voltage
• Input Interface: Micro USB port (commonly used at phone).
• Charging method: linear charge.
• A full charge voltage: 4.2V.
• Charge Current: 1A (default), modify the onboard resistor to adjust the charging current
• Charging accuracy: 1.5%.
• Charging indicator: Blue LED charging, Red LED full.
• Output Reverse: lithium batteries can not reverse.
• Dimensions: 22 x 17mm.
• Color : Blue

Package Content :

• 1 X  5V Micro USB 1A TP4056 Lithium Battery Module

(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)

We carry different type of connector too, click here : Mini-b USB TP4056
