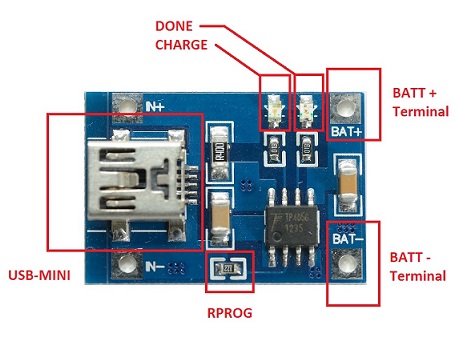

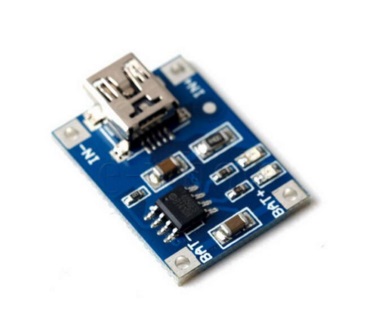

TP4056 Mini USB 1A Lithium Battery Charging Module PCB

This is a 3.7V lithium battery charger module based on TP1056 with Mini USB interface.It is small size and light weight, especially for a single lithium battery charging.

Features:

• This TP4056 specification charger board allows user to charge battery using either a Mini USB connector at 4.5V - 5.5V input voltage
• Input Interface: Micro USB port (commonly used at phone).
• Charging method: linear charge.
• A full charge voltage: 4.2V.
• Charge Current: 1A (default), modify the onboard resistor to adjust the charging current
• Charging accuracy: 1.5%.
• Charging indicator: Blue LED charging, Red LED full.
• Output Reverse: lithium batteries can not reverse.
• Dimensions: 22 x 17mm.
• Color : Blue

Package Content :

• 1 X  5V Mini USB 1A TP4056 Lithium Battery Module

(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)

If you need different connection, you can click : Micro USB TP4056
