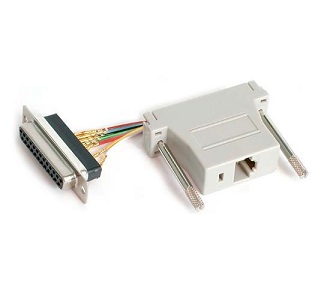

25pin DB25 to RJ45 Modular Adapter Female

This modular adapter allows you to configure your own specific pinouts. When trying to run a parallel connection over a very long distance, it is better to use a ethernet line to do so. It will cut down on signal loss and interference.

This akiba-Accessories Modular Adapter Kits are unwired and are used to convert a DB connector to a modular Male connector. They can be wired to fit your applications using customized cabling to connect serial ports on PC's or peripherals.

Features:

• This Adapter is suitable for the used of modular RS232, RS422, and RS485 connections
• Material : ABS
• With Thumb screwing
• Color : Beige
• Connection A : DB25 Female
• Connection B : RJ45 Female

RJ45 Pinout:

• Pin1 -- Blue
• Pin2 -- Orange
• Pin3 -- Black
• Pin4 -- Red
• Pin5 -- Green
• Pin6 -- Yellow
• Pin7 -- Brown
• Pin8 -- White

Package Contents :

• 1 X Complete Set RJ45 to DB25 F Modular Connector

(Note 1: Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time

Note 2 : As shown in picture, this modular adapter will need to be wired/assembled according to your customized application so that it is functional)

If you need DB9, please click C-5DB95 or CC-5DB96
