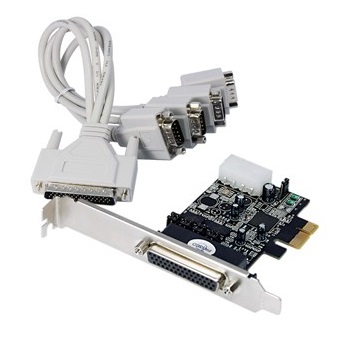

PCIe 4S Serial Card for Point of Sales POS Application

PCIe 4 Port Serial Card with power, which is specially designed for POS application

Features :

• Compliant with PCI Express Base Specification 1.1
• Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys
• Comes with Fan Out Cable and support 4 x UART serial ports
• Built-in 16C950 compatible UART
• 128-bype deep transmit/receive FIFOs
• Data transfer rate up to 230400bps
• Provides 5VDC or 12VDC power output via pin 1/4/8/9
• Plug-n-Play, I/O address and IRQ assigned by BIOS
• Support Windows XP/Vista/7

 Package Content :

• 1 X PCIe Serial Card
• 1 X Driver CD
• 1 X Manual
• 1 X Fan Out Cable

(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)
