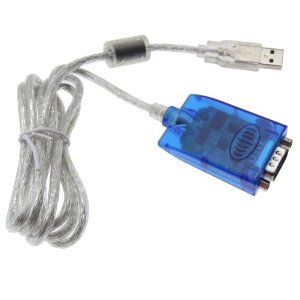

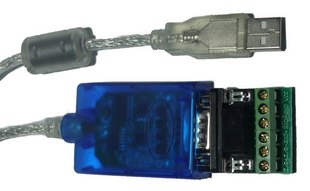

USB to RS-485/422 Cable

USB to RS-485/422 industrial intelligent converter. A simple low cost solution for the communication between USB and RS-485/422. Compared with RS-232 to RS-485/422 converter, USB to RS-485/422 converter has many advantages.

Features:

• Easy installation
• No power supply needed
• Automatic send data control, auto distinguish and sense direction adopt data transfer
• Compliance: USB1.1/2.0 compliant
• Connector: USB type A
• Speed: 12Mbps(Full-speed USB)
• Serial interface
• Numbers of ports: 1
• Serial standards: RS485/422

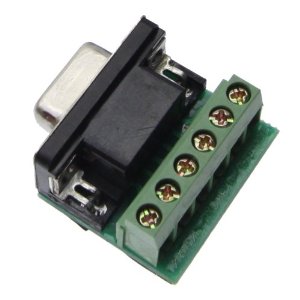

• Connector: DB9 male
• ESD Protection: 15KV embedded
• Baud rate: 300bps to 128000bps
• USB signal: VCC, DATA+, DATA-, GND, FG
• RS-485 signal: D+,D-,GND
• RS-422 signal: T+, R+, T-, R-,GND
• Loading: 32 nodes or custom 128 nodes
• Transmission: RS-485 1800M(115200bps), USB 5M
• Driver Support
• Support Windows98/ME and Windows2000/XP,Windows Server 2003/2008
• Product Dimension: 55mm×36mm×18mm (Cable 1.5m)
