2.5mm Male Infrared IR Receiver Extension Wire for TV Remote 3-Section

Extend components remote control reach with this IR Extender cable. It is perfect for applications where the receiver needs to be hidden out of sight, behind a mounted HDTV or in an AV cabinet. Simply plug the IR Extender Wire into the 2.5mm port of the machine, no external power outlet required where it draws power from your device. Locate the IR Eye in line-of-sight of the remote to control your out of sight devices.

Features:

• Remote IR extender for Set top box, DVD Players, HD Converter boxes and etc that is controlled by an infrared remote.
• With LED
• Max. Voltage : 5V (don't input higher than 6V, or it will damage the IR extender)
• 38hKz operating frequency
• Connection : 2.5mm Male (3-Section)
• Approx. Cable length : 1.5m
• Color : Black

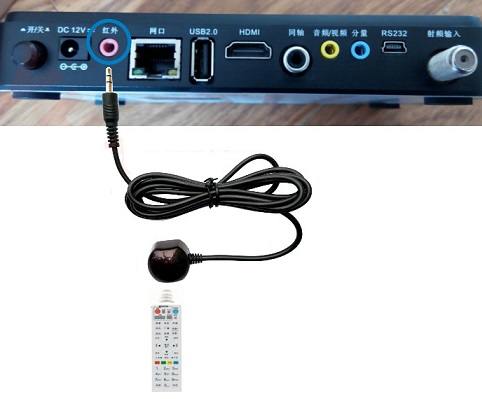

How to install the IR Repeater Cable :

• 1. Connect the 2.5mm connector to the receiver port at your device.
• 2. Start pointing your remote control to see if it detects (Note : this is one of the standard IR extenders for general applications, and it may happens that it is not compatible to some models. If there is no detection [meaning not compatible], please pull out IR extender immediately, don't let it over 30 seconds) or if it is succesffuly detection, then next step.
• 3. Place the Receiver in your desired location. You can attach it to the location with the included double sided tape.
• 4. Place the IR plug on devices that you want to control.

Package Content :

• 1 X 2.5mm Receiver Infrared IR TV Remote Control Extender
• 1 X Double Sided Tape

(Note 1 : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time

Note 2 : There are other models of IR Extender with 2.5mm or 3.5mm 2-section or 4 section, please choose carefully before ordering)
