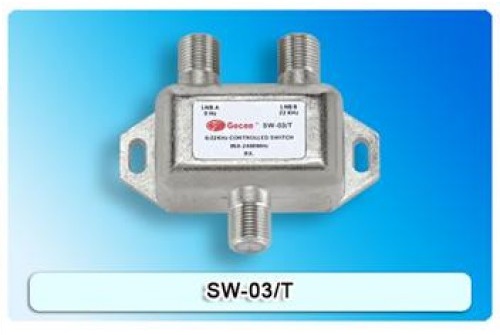

Gecen 22KHz Controlled Switch for Satellite SW-03-T

0/22KHz signal after the professional circuit processing more compatible models. Receiver provides 0/22KHz signal which way to choose a two-way satellite signal. With a coaxial cable to transmit control signals with the satellite signal.

Features:

• Zinc die-cast housing, nicke-plated
• Anticorrosive nickel finish
• Light weight and compact size
• Precision machined threads
• Easy installation
• Select one of two satellite signals through 0/22KHz signal supplied from satellite receiver
• Utilize one coaxial cable to transmit control signal and satellite signal simultaneously
• Frequency range :950-2400 (MHz)
• Normal working voltage :12-20 (V)
• Insertion loss: 3 (dB)
• Working current consumption: 10mA
• Isolation: 20 (dB)
• Maximum through current: 500mA
• Reflection loss: 8 (dB)
• Port impedance: 75 Ω
• Connectors: 3 x F Type Female

Package Content:

• 1 x 0/22KHz Controlled Switch SW-03/T 950-2400MHz 0/22KHz signal
