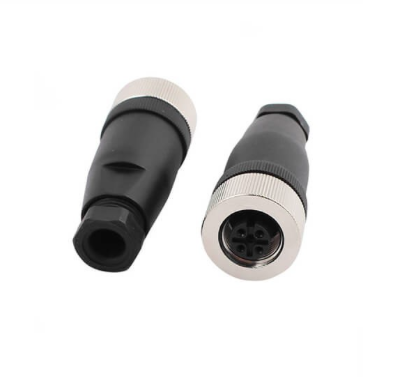

M12 Female Connector 4-Pin A Code Straight Waterproof

Dust and water-proof 4 pin A-coded M12 connector which is commonly used with sensor technology, which does not require any special tools for assembling. For installation you only need wire cutter and small screw driver. M12 Connector is mounted into sensor with thread. Widely use for sensor, actuators, industrial camera, industrial I/O connections, material handling, pharmaceutical manufacturing, robotic systems, semiconductors, packaging, labeling and etc...

Features:

• A-coded 4 pin M12 Connector Female
• Screw joint wire connection
• Dust / Waterproof, degree of protection IP 67
• Anti-vibration locking screw design
• Easy to assemble
• Type : Straight

Package Content:

• 1 x M12 4 Position A-Coded female Connection IP67 wireable I/O

(Note 1 : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time

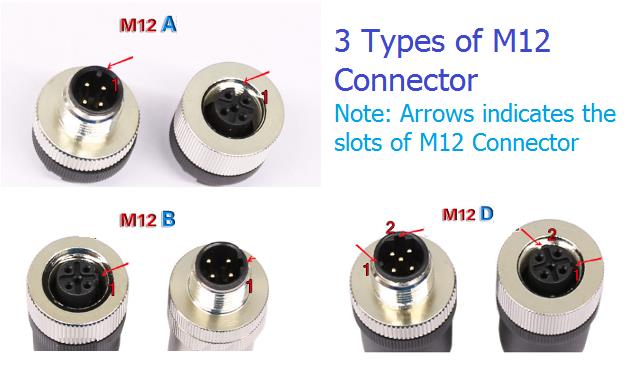

Note 2 : M12 connectors have 3 types. A-Coded, B-Coded & D-Coded. Please refer photo 2 for reference

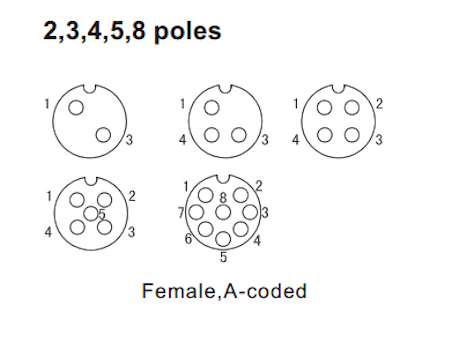

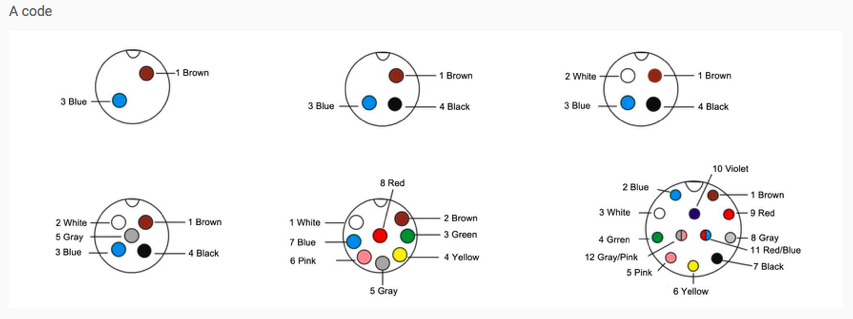

Notes 3 : For contact arrangement, please refer to photo 3 and 4)
