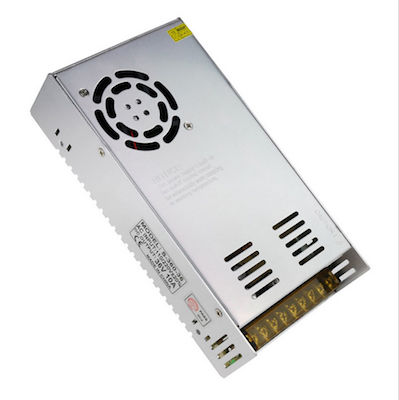

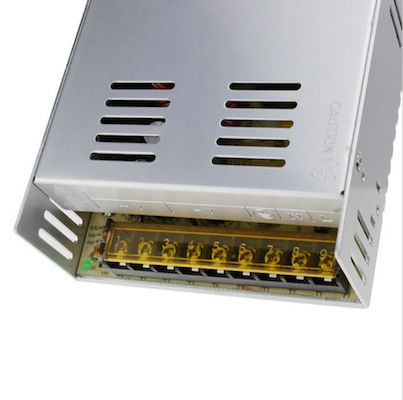

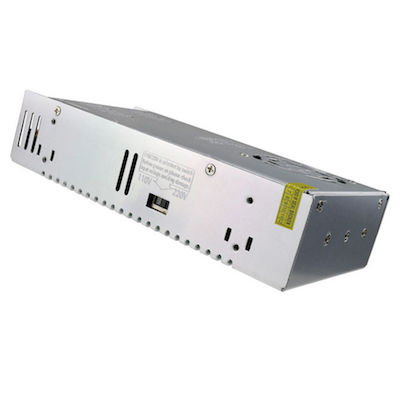

Power Supply AC to DC (36V 10A)

Metal enclosure type AC to DC switch mode power supply that suitable for most industrial application. It protects over short circuit, overload and over voltage. Suitable for devices with voltage input 36V.

Specification:

• Input voltage: 200-230V AC 50Hz
• Output voltage: 36VDC
• Output current: 10A
• Output power: 360W
• Overload Protection : 105%～200%
• OverVoltage Protection : 115%～135%
• Short Circuit Protection : Auto Recover
• Working Environment : —10℃～50℃；20%～90%RH
• Safety standard : Design reference EN/UL60950
• EMC Standard : Design reference EN55022 Class B; EN61000-4-2/-3/-4/-5/-6/-11
• Size :  220mm X 120mm X 50mm

Package Content:

• 1 x 360W Open Frame Enclosure 240V AC to 36V 10A DC Power Supply

(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)

We also carry other different voltages of Power Supply, click HERE
