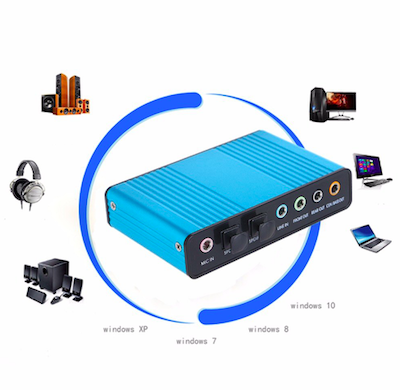

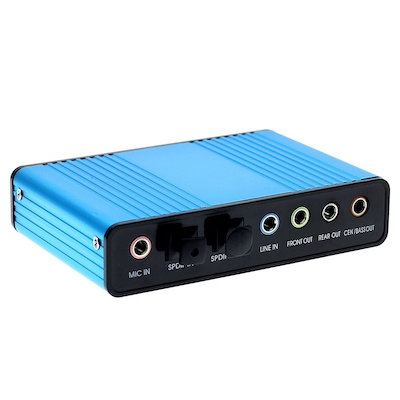

5.1 Channel USB Sound Box with Optical SPDIF

This USB Sound Box is an USB audio controller.

• It supports 32KBz, 44.1 khz. (which need two drivers of application software support) and sampling rate in digital recording, 48KHz sampling in analog recording and 48KHz in digital/ analog audio playback.
• In digital playback mode, it recieves audio stream from PC via USB interface and transmits audio data recording to the AES/ EBU, IEC60958, S/PDIF consumer interface standards.
• Only R, L channel PCM audio in 5.1 channel can be conveyed in digital playback mode. In analog playback mode, it supports 6 channels codec for analog playback.
• In digital recording mode, it recieves SPDIF digital audio input and sends back to PC through USB. Three sampling rates: includes 32KHz, 44KHz are automatically locked internally. In analog recording mode, fixed 48KHz sampling rate is supported by analog audio recording.

Features :

• Supports AES/ EBU, IEC60958, S/PDIF consumer formats for stereo PCM audio
• Fixed 48KHz sampling rate for 5.1 channel playback
• Supports digital recording function with 32KHz, 44KHz, and 48 KHz sampling rates
• Supports analog recording function
• Supports SCMS (Serial Copy Management System) copy protection
• Compatible with 98SE, ME, 2000, XP, Mac OS 9.1 (Mac version has 2 channel playback only)
• Fully duplex playback/ recording audio stream without sound cardin PC
• Compliant with USB specification V1.1
• Compliant with USB audio device class V1.0
• Supports USB full speed 12Mbit serial data transmission
• 3 input terminals
• 3 outputs terminals
• Altrenate setting 0 is a zero-bandwith setting used to release the claimed bandwith on the bus when the ducive is inactive
• Isochronous transfer sues adaptive and asynchronous syncronization
• Supports multi channels audio code interface for 5.1 channel playback
• Supports conventional audio 2 channels source playback (only L, R channel active)
• Plud and play under windows without external memory
• Approx. Size: 9*6*2cm

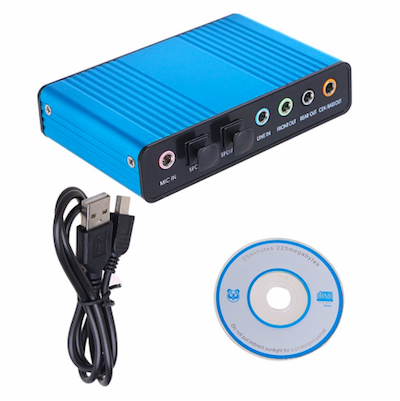

Package Content :

• 1 X USB 6 Channel External Sound Card 5.1 Surround Adapter Audio S/PDIF
• 1 X USB Cable
• 1 X Driver CD

(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)
