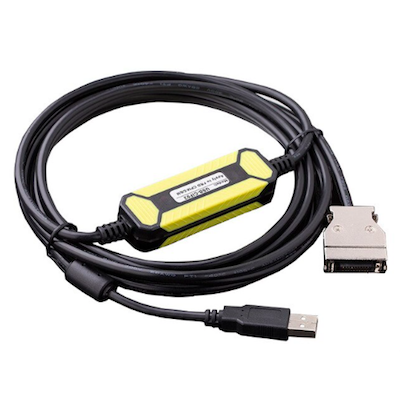

CPM1A 2A Series PLC Program Download USB Cable USB-CIF02

This USB-CIF02 cable is a suitable replacement of USB programming cable for Omron CPM1,CPM1A, CPM2A, CPM2AH, C200HS, C200HX/HG/HE and SRM1 series PLC. It can also used for CS/CJ, CQM1H and CPM2C series PLC by transfer with CS1W-CN114.

This cable simulate USB port as traditional serial port (usually COM3), which enables existing programming software to communicate through simulated traditional port and PLC devices.  Embedded with this cable is the necessary data conversion equipments to communicate between PLC end to and PC USB end.

Features:

• To be used for the connection between the computer and serial devices and transfer the signals from PLC to PC.
• Support CX-Programmer V1.0 and above
• Suitable for Omron CPM1,CPM1A, CPM2A, CPM2AH, C200HS, C200HX/HG/HE and SRM1 series PLC
• Also used for CS/CJ, CQM1H and CPM2C series PLC by transfer with CS1W-CN114

• Support Windows 7/ 2000/ Windows XP (WinNT4/ 95/ 98/ Me/ DOES NOT SUPPORTED)
• Smart LED indicator, auto identification of optical isolation status
• Baud rate: 300 bps ~ 1Mbps automatically adaptive
• USB bus-powered, with current consumption of 50 mA
• Each PC Support multiple cables
• Reliable performance & reasonable price
• Compatible with USB V1.1 and V2.0

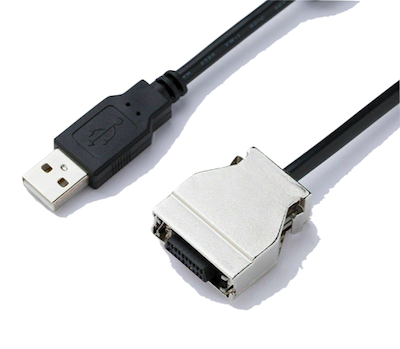

• Connector at End A : USB 2.0

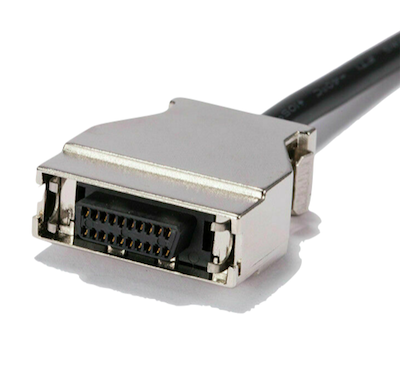

• Connector at End B : PLC port 20pin
• Color : Black
• Approx Length : 2.5m

Package Content :

• 1 X USB-CIF02 PLC Programming Cable
• 1 x Driver CD

(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)
