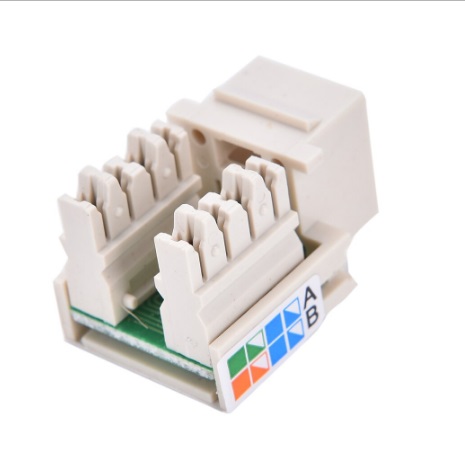

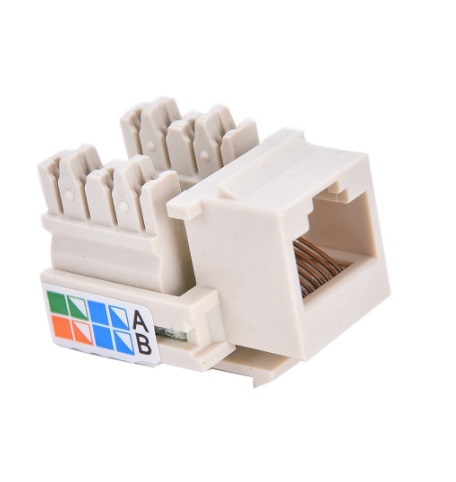

CAT5e Keystone Jack 90 Degree Cat-5 Network Connector

This UTP cat5 / Cat5E 8p Modular Jack Connector RJ45 Networking is suitable for connection and communication between the work area outlet to achieve signal transmission. The modular plugs are manufactured from high-impact clear poly-carbonate to withstand everyday wear and tear. You can except error-free data transfers.

Features:

• CAT 5e rated connector provide excellent performance for data networks requiring maximum speed and bandwidth.
• PCB technology provides maximum performance and superior signal quality.
• Gold plated contacts and easy snap-in retaining clip ensure a secure and corrosion free connection.

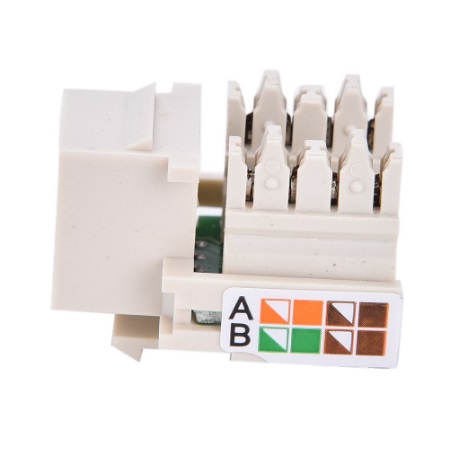

• Using high quality poly-arbonate flame retardant materials, which reached the level of UL94V-0 (Includes an integrated TIA-568A/B color wiring diagram).
• Applicable wire gauge: 22 to 26AWG.
• IDC (Insulation Displacement Connector) end color press note some wire for fast and accurate wire.
• Approx Size : 20mm X 31mm X 22mm
• Color : White

Package Content:

• 1 x UTP Cat-5 8p8c Modular Jack Connector RJ45 Networking

(Note 1 : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time

Note 2 : As for the back box, must prepare enough space for cabling connection, the larger space the better it is)

Note 3 : This price is only for Modular jack Connector only. faceplate is not included, please purchase seperately)

We also carry faceplate, click HERE
