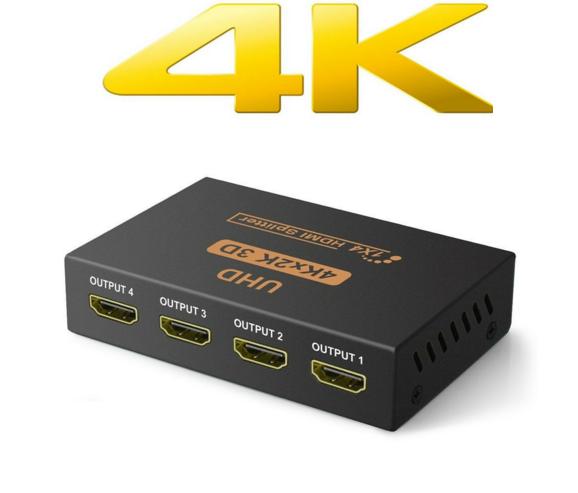

The HDMI Splitter 1x4 uses a single HDMI source, accessing to multiple HDMI sinks. The splitter allows one HDMI device to be split easily to four HDMI compatible monitors or projectors. The splitter can also be replaced at the end of a long HDMI cable to regenerate the HDMI signal. This model supports HDMI 4K UHD.
Features:
- Distributes the HDMI input to 4 identical outputs, while maintaining the best video quality
- HDMI resolution : 480i/576i/480p576p/720p1080i/1080p/4K
- Accommodate the simultaneous connection of high definition video sources, such as HD player, Blu-ray player, Set Top Box, P&S3, P&S4, Xbox360 etc
- UHD Support 4Kx2K
- Supports HDMI1.4, 3D
- Support for a maximum speed of 3.4G and max bandwidth of 340 MHz
- Support deep colour 8/10/12bit
- Support input up to 8 metres AWG26 HDMI standard cable length, output up to 8 metres AWG26 HDMI standard cable lenth
- Display single source, multi-output high-definition signal source from DVD player A/V receiver, se-top box
- Power supply 5V
- Approx Size: 60mm x 95mm x 20mm
- Colour : Black
Connection :
- 1 HDMI cable from HDMI source devices into HDMI Splitter input
- 4 HDMI cables from displayers (monitor and projectors) into HDMI Splitter outputs
- 5V power supply to HDMI 1x4 Splitter
Package Content :
- 1 x 1 to 4 HDMI Splitter 4Way UHD 4K Support
- 1 x Power Supply (Malaysia 3pin)
- 1 x User Manual
(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)
We carry different types of HDMI splitter, click HERE
