This is a connection cable to convert 16pin OBD2 to a DB15 connection. it is used for connecting some models of diagnostic tool interface and your vehicle with OBD-II compliant
Features:
- Supports OBD2 protocols
- Compatible diagnostic tools with a 16 pin socket.
- For connecting your diagnostic interface and your vehicle with OBD Ⅱ compliant
- All 16 pins pass through
- 15-pin 2-row DB15 at diagnostic interface (Note : Not all the diagnostic tools using the same connection pin. Please refer the pin out connection in the photo 2 and ensure your device/tool uses the same configuration)
- 2 models for selection :

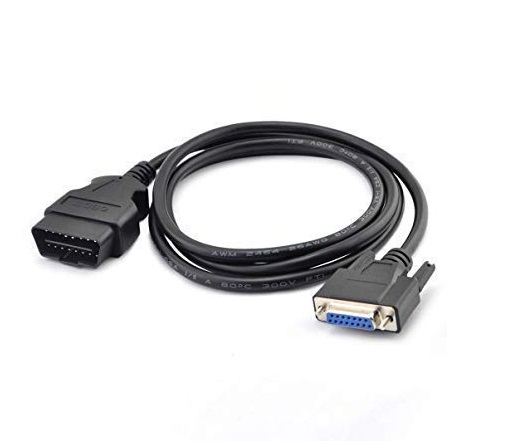

- Model A) Connection at End A : 1 X 16pin OBD2 Male; Connection at End B : 1 X 15pin DB15 Female
- Model B) Connection at End A : 1 X 16pin OBD2 Male; Connection at End B : 1 X 15pin DB15 Male
- Colour : Black
- Approx. Length : 1m
Package Content :
- 1 x OBDII 16Pin to Female Male DB15 15pin Cable Assembly
(Note 1 : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time
Note 2 : Not all the diagnostic tools using the same connection pin. Please refer the pin out connection in the photo 2 and ensure your device/tool uses the same configuration before order placing
Note 3 : This cable is not meant to be plugged directly into a computer's serial port. It is meant to plug into some sort of hardware interface with the same pint configurations)
