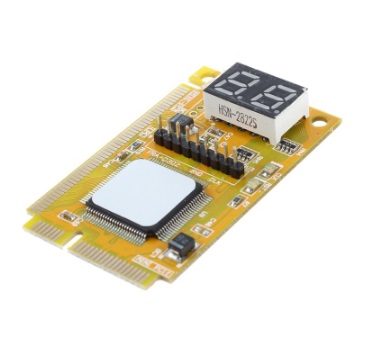

3 in 1 Mini PCI PCI-E LPC PC Analyzer Diagnostic Tester Post Card, with Super mini design. It tests your computer quickly & easily. The laptop motherboard wil output a series of fault codes in the process of working.The disgnostic card will receive these fault codes. The users can determine the fault of the motherboard through the fault codes.

Features:

3 in 1 Mini PCI / Mini PCI-E / LPC 2-Digit PC analyzer for notebook.
Suitable for laptop Support interface : Mini PCI, Mini PCI-E, LPC bus interface
Mini PCI, Mini PCI-E & LPC for easy access to your laptop PC.
Ideal for IT enthusiasts and engineers to test and repair computer.
Ideal and useful tool for notebook repairing partner, easy to use.
Diagnosis signal which show the problem of CPU, Memory, display card and so on.
LED displays shows diagnosis result of motherboard.
POST (Power On Self Test) card displays error code quickly after booting.
Error code table offered makes you know the error details easily.
Hexadecimal character display.
Supports AMI, Award, Phoenix & Tandy 300 BIOS.
Supports Windows 98, 2000, XP, Vista & Win7.
Approx. Size : 5.1cm x 3.0cm.

Note:

Please be aware that Mini-PCI-E is supported with limitation model of notebook, and the pin orientation must follow to PIN1-3.3V, PIN2-LFRAME#, PIN3-LAD3, otherwise, it need to test with other port, such as LPC or mini-pci. However, it can work with most of notebooks.

Tested models :

HP: V6000 series, including CT6 and other models; V9000 series, including AT8, AT9 and other models
Lenovo: CW3, CW4, LE4, LE5 and other models
Shenzhou: 310, 320 and other models
Violet: SYMPHONY6.0, 7.0 and other models
Acer: Most models
Fujitsu: PROTLAND10 and other models
Toshiba: Most models

Package Content :

1 x Debug Card Mini PCI Mini PCI-E LPC 2-Digit PC Analyzer
1 x User Guide manual

(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time

Note 2:

Please be aware that Mini-PCI-E is supported with limitation model of notebook, and the pin orientation must follow to PIN1-3.3V, PIN2-LFRAME#, PIN3-LAD3. As an alternative, it need to test with other port, such as LPC or mini-pci)

Laptop Diagnostic POST Debug Card Mini PCI-E PCI LPC PC Analyzer
