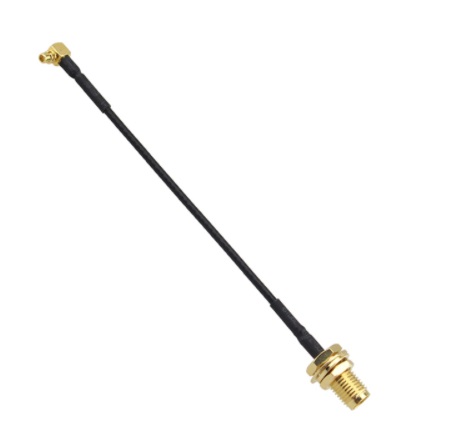

L Shape MMCX Male Pin to SMA Extension Cable

These 2 models of short length of flexible SMA cable, allowing them to be connected to MMCX to SMA to let you use antenna with SMA connectors on the MMCX-based connection, application such as FPV Air Unit from DJI.

These adapter cable feature a L-Angle MMCX connector while one is with SMA Pin and and another one is with SMA Hole connector. One of them will fit to your device.

Features:

• SMA to MMCX RF113 Cable
• Gold Plated Connectors
• Frequency up to 6GHz
• Terminated with 1.13mm coax cable.
• Characteristic Impedance: 50 ohm

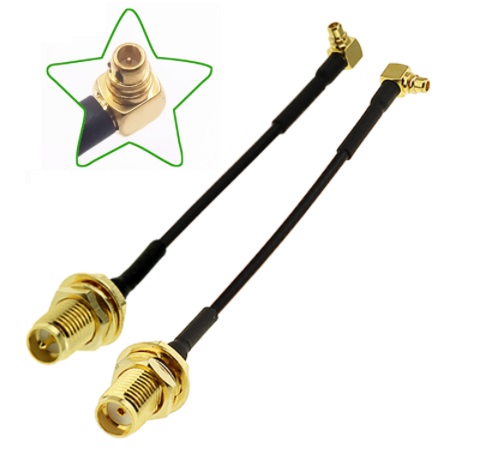

• 2 models for selection :
• Model 1) Connection End A : MMCX Male (Pin), Connection End B : SMA Female Hole - Outer Thread
• Model 2) Connection End A : MMCX Male (Pin), Connection End B : RP-SMA Female Needle - Outer Thread
• Approx. Length : 0.15m
• Color: Black.

Package Content:

• 1 x RP SMA Connector to MMCX 90Deg Antenna Extension Adapter Cable

(Note 1 : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time

Note 2 : There are 2 different types for selection, one is with needle pin and one is with hole. Please check carefully before on photo 2)
