6 Pin 0.5mm 1mm 1.25mm Pitch FFC FPC 6pin Flexible Flat Cable

Flexible Flat Cable Spare Parts for Notebook / Game Console / Camera and more devices.

We carry Flexible Flat Flex FFC Spare part replacement cables at different pitch, length / Same & Opposite onnector facing direction for your selection.

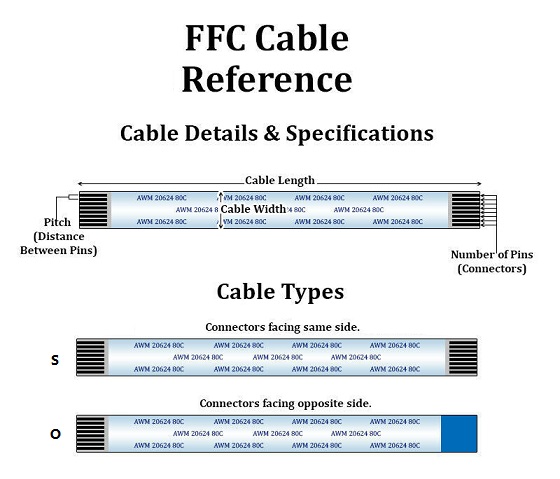

Features :

• FFC at 6pin
• Pitch Size : Selectable
• Pitch 0.5mm for 6pin = width is 3.5mm
• Pitch 1.0mm for 6pin = width is 7mm
• Pitch 1.25mm for 6pin = width is 8.5mm
• Length : Selectable
• Connector Facing : SAME (the contacts on two terminals are on the same side) or OPPOSITE (the contacts on two terminals are on the opposite side)

Package Content :

• 1 X 6pin AWM 20624 80C 60V VW-1 FFC 6p Cable 6 Pins Flat Ribbon Flex

(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)

If you need other different pins of FFC cables, please ask us via email.
