M12 Sensor Connector 3p 4p 5p Pin Male Female Straight Right L Angle Plug

Dust and water-proof A-coded M12 connector is commonly used with sensor technology, which does not require any special tools for assembling. For installation you only need wire cutter and small screw driver. M12 Connector is mounted into sensor with thread. Widely use for sensor, actuators, industrial camera, industrial I/O connections, material handling, pharmaceutical manufacturing, robotic systems, semiconductors, packaging, labeling and etc...

We carry 3/4/5 pins straight and L-angled type for your selection.

Features:

• A-coded 3/4/5pin M12 Connector Male/Female (Note : not B-coded or D-coded)
• Screw joint wire connection
• Dust / Waterproof, degree of protection IP 67
• Suitable for operating voltage 300V-DC/ 250V-AD, current 4A
• PA+GF Housing / shell
• Anti-vibration locking screw design
• Easy to assemble
• Models for selection :

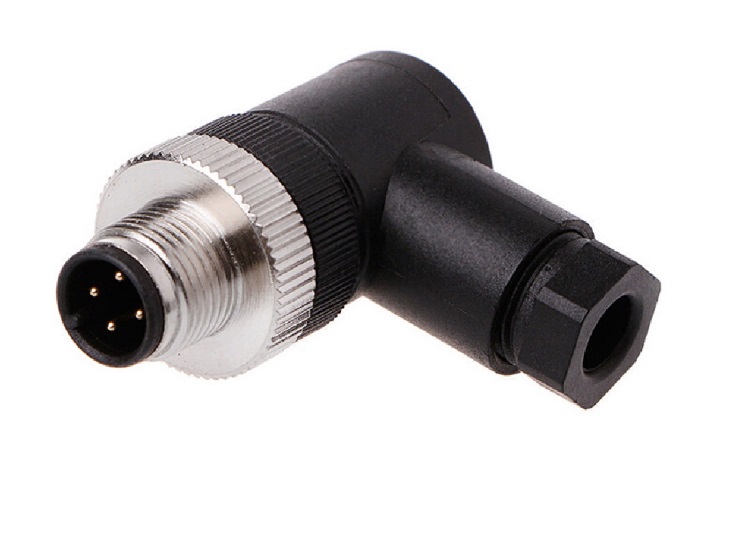

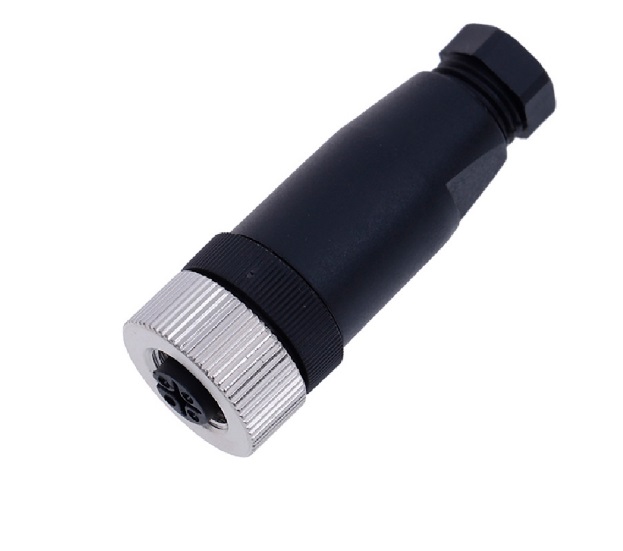

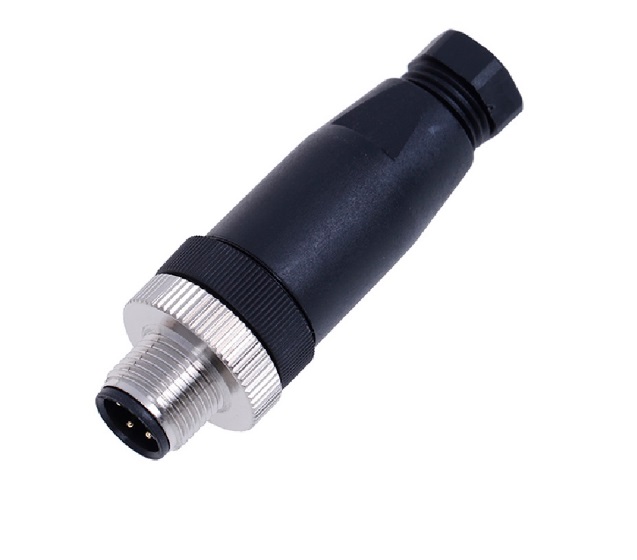

• 3pin Male Straight / 3pin Female Straight / 3pin Female L-Angled / 3pin Female L-Angled
• 4pin Male Straight / 4pin Female Straight / 4pin Female L-Angled / 4pin Female L-Angled
• 5pin Male Straight / 5pin Female Straight / 5pin Female L-Angled / 5pin Female L-Angled

Package Content:

• 1 x M-12 Field Installable Connector for Wiring

(Note 1 : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time

Note 2 : M12 connectors have different coded as photo shown. The above selection is A-Coded. If you need B-Coded or D-Coded, please ask us)
