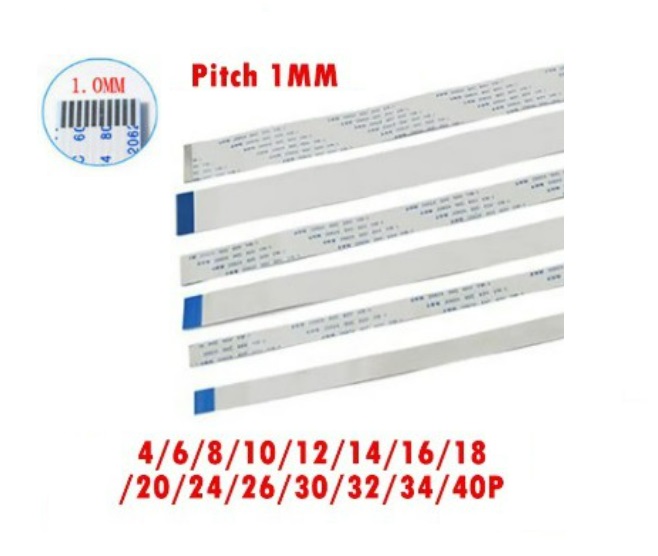

300mm Long Pitch 1.0mm FFC Flex Cable Same Opposite Side 30cm

Flexible Flat Cable Spare Parts for Notebook / Game Console / Camera and more devices.

We carry Flexible Flat Flex FFC Spare part cables at different pin for 1.0mm pitch, 300mm length / Forward  & Reverse direction.

Features :

• FFC at Pitch 1.0mm
• Length: 30cm
• Number of Conductors: Selectable

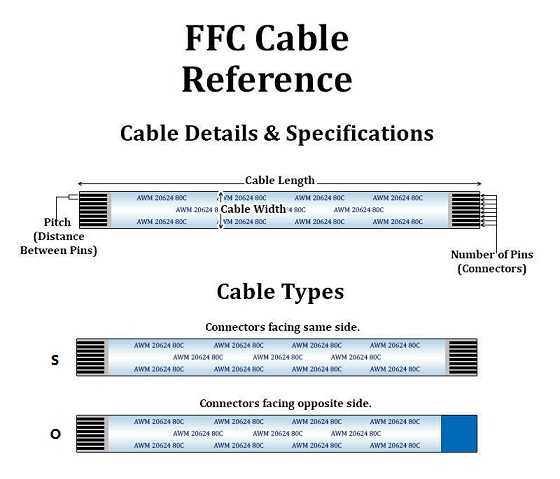

• Connector Facing, SAME : the contacts on two terminals are on the same side
• Connector Facing, OPPOSITE : the contacts on two terminals are on the opposite side

Models :

• FFC-P10-4P-S30 : Pitch 1.0mm, 4pin, Same Side, Length 30cm
• FFC-P10-4P-O30 : Pitch 1.0mm, 4pin, Opposite Side, Length 30cm
• FFC-P10-5P-S30 : Pitch 1.0mm, 5pin, Same Side, Length 30cm
• FFC-P10-5P-O30 : Pitch 1.0mm, 5pin, Opposite Side, Length 30cm
• FFC-P10-6P-S30 : Pitch 1.0mm, 6pin, Same Side, Length 30cm
• FFC-P10-6P-O30 : Pitch 1.0mm, 6pin, Opposite Side, Length 30cm
• FFC-P10-7P-S30 : Pitch 1.0mm, 7pin, Same Side, Length 30cm
• FFC-P10-7P-O30 : Pitch 1.0mm, 7pin, Opposite Side, Length 30cm
• FFC-P10-8P-S30 : Pitch 1.0mm, 8pin, Same Side, Length 30cm
• FFC-P10-8P-O30 : Pitch 1.0mm, 8pin, Opposite Side, Length 30cm
• FFC-P10-9P-S30 : Pitch 1.0mm, 9pin, Same Side, Length 30cm
• FFC-P10-9P-O30 : Pitch 1.0mm, 9pin, Opposite Side, Length 30cm
• FFC-P10-10P-S30 : Pitch 1.0mm, 10pin, Same Side, Length 30cm
• FFC-P10-10P-O30 : Pitch 1.0mm, 10pin, Opposite Side, Length 30cm
• FFC-P10-12P-S30 : Pitch 1.0mm, 12pin, Same Side, Length 30cm
• FFC-P10-12P-O30 : Pitch 1.0mm, 12pin, Opposite Side, Length 30cm
• FFC-P10-14P-S30 : Pitch 1.0mm, 14pin, Same Side, Length 30cm
• FFC-P10-14P-O30 : Pitch 1.0mm, 14pin, Opposite Side, Length 30cm
• FFC-P10-15P-S30 : Pitch 1.0mm, 15pin, Same Side, Length 30cm
• FFC-P10-15P-O30 : Pitch 1.0mm, 15pin, Opposite Side, Length 30cm
• FFC-P10-16P-S30 : Pitch 1.0mm, 16pin, Same Side, Length 30cm
• FFC-P10-16P-O30 : Pitch 1.0mm, 16pin, Opposite Side, Length 30cm
• FFC-P10-18P-S30 : Pitch 1.0mm, 18pin, Same Side, Length 30cm
• FFC-P10-18P-O30 : Pitch 1.0mm, 18pin, Opposite Side, Length 30cm
• FFC-P10-20P-S30 : Pitch 1.0mm, 20pin, Same Side, Length 30cm
• FFC-P10-20P-O30 : Pitch 1.0mm, 20pin, Opposite Side, Length 30cm
• FFC-P10-22P-S30 : Pitch 1.0mm, 22pin, Same Side, Length 30cm
• FFC-P10-22P-O30 : Pitch 1.0mm, 22pin, Opposite Side, Length 30cm
• FFC-P10-24P-S30 : Pitch 1.0mm, 24pin, Same Side, Length 30cm
• FFC-P10-24P-O30 : Pitch 1.0mm, 24pin, Opposite Side, Length 30cm
• FFC-P10-26P-S30 : Pitch 1.0mm, 26pin, Same Side, Length 30cm
• FFC-P10-26P-O30 : Pitch 1.0mm, 26pin, Opposite Side, Length 30cm
• FFC-P10-28P-S30 : Pitch 1.0mm, 28pin, Same Side, Length 30cm
• FFC-P10-28P-O30 : Pitch 1.0mm, 28pin, Opposite Side, Length 30cm
• FFC-P10-30P-S30 : Pitch 1.0mm, 30pin, Same Side, Length 30cm
• FFC-P10-30P-O30 : Pitch 1.0mm, 30pin, Opposite Side, Length 30cm
• FFC-P10-32P-S30 : Pitch 1.0mm, 32pin, Same Side, Length 30cm
• FFC-P10-32P-O30 : Pitch 1.0mm, 32pin, Opposite Side, Length 30cm
• FFC-P10-40P-S30 : Pitch 1.0mm, 40pin, Same Side, Length 30cm
• FFC-P10-40P-O30 : Pitch 1.0mm, 40pin, Opposite Side, Length 30cm

Package Content :

• 1 X 300mm Length AWM 20624 80C 60V VW-1 FFC P 1.0mm Pitch

(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)
