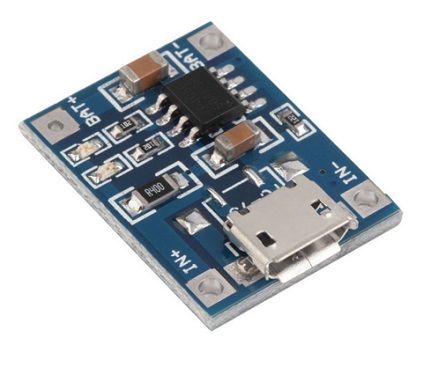

Micro Type-C Mini USB 5V 1A TP4056 18650 Lithium Battery Charger Module Board

This is a 3.7V lithium battery charger module based on TP4056 with different of USB connection interface. It is small size and light weight, especially for a single lithium battery charging. We carry Micro USB, Mini USB and Type C USB.

Features:

• This TP4056 specification charger board allows user to charge battery using either a Micro USB connector at 4.5V - 5.5V input voltage at 1A
• Charging method: linear charge.
• A full charge voltage: 4.2V.
• Charge Current: 1A (default), modify the onboard resistor to adjust the charging current
• Charging accuracy: 1.5%
• Charging indicator: Blue LED charging, Red LED full
• Output Reverse: lithium batteries can not reverse
• 3 models for selection : Micro USB / Mini USB / Type C port
• Approx Size : 22 x 17mm.
• Color : Blue

Package Content :

• 1 X  5V Micro or Mini or TypeC Female USB 1A TP4056 Lithium Battery Module

(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)

If you need any additional cable for connection, please ask us via Email
