0.5mm Pitch 150mm Flexible Flat Cable FFC Same Side Opposite Length 15cm

Flexible Flat Cable Spare Parts for Notebook / Game Console / Camera and more devices.

We carry Flexible Flat Flex FFC Spare part cables at different pin for 0.5mm pitch, 150mm length / Forward  & Reverse direction.

Features :

• FFC at Pitch 0.5mm
• Length: 15cm
• Number of Conductors: Selectable

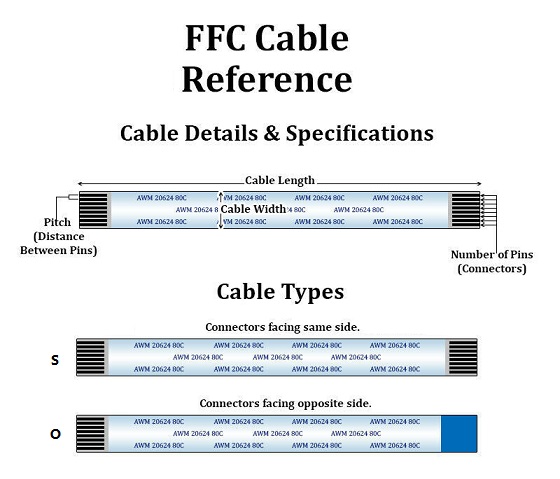

• Connector Facing, SAME : the contacts on two terminals are on the same side
• Connector Facing, OPPOSITE : the contacts on two terminals are on the opposite side

Models :

• FFC-P05-4P-S15 : Pitch 0.5mm, 4pin, Same Side, Length 15cm
• FFC-P05-4P-O15 : Pitch 0.5mm, 4pin, Opposite Side, Length 15cm
• FFC-P05-5P-S15 : Pitch 0.5mm, 5pin, Same Side, Length 15cm
• FFC-P05-5P-O15 : Pitch 0.5mm, 5pin, Opposite Side, Length 15cm
• FFC-P05-6P-S15 : Pitch 0.5mm, 6pin, Same Side, Length 15cm
• FFC-P05-6P-O15 : Pitch 0.5mm, 6pin, Opposite Side, Length 15cm
• FFC-P05-8P-S15 : Pitch 0.5mm, 8pin, Same Side, Length 15cm
• FFC-P05-8P-O15 : Pitch 0.5mm, 8pin, Opposite Side, Length 15cm
• FFC-P05-10P-S15 : Pitch 0.5mm, 10pin, Same Side, Length 15cm
• FFC-P05-10P-O15 : Pitch 0.5mm, 10pin, Opposite Side, Length 15cm
• FFC-P05-12P-S15 : Pitch 0.5mm, 12pin, Same Side, Length 15cm
• FFC-P05-12P-O15 : Pitch 0.5mm, 12pin, Opposite Side, Length 15cm
• FFC-P05-14P-S15 : Pitch 0.5mm, 14pin, Same Side, Length 15cm
• FFC-P05-14P-O15 : Pitch 0.5mm, 14pin, Opposite Side, Length 15cm
• FFC-P05-15P-S15 : Pitch 0.5mm, 15pin, Same Side, Length 15cm
• FFC-P05-15P-O15 : Pitch 0.5mm, 15pin, Opposite Side, Length 15cm
• FFC-P05-16P-S15 : Pitch 0.5mm, 16pin, Same Side, Length 15cm
• FFC-P05-16P-O15 : Pitch 0.5mm, 16pin, Opposite Side, Length 15cm
• FFC-P05-18P-S15 : Pitch 0.5mm, 18pin, Same Side, Length 15cm
• FFC-P05-18P-O15 : Pitch 0.5mm, 18pin, Opposite Side, Length 15cm
• FFC-P05-20P-S15 : Pitch 0.5mm, 20pin, Same Side, Length 15cm
• FFC-P05-20P-O15 : Pitch 0.5mm, 20pin, Opposite Side, Length 15cm
• FFC-P05-22P-S15 : Pitch 0.5mm, 22pin, Same Side, Length 15cm
• FFC-P05-22P-O15 : Pitch 0.5mm, 22pin, Opposite Side, Length 15cm
• FFC-P05-24P-S15 : Pitch 0.5mm, 24pin, Same Side, Length 15cm
• FFC-P05-24P-O15 : Pitch 0.5mm, 24pin, Opposite Side, Length 15cm
• FFC-P05-25P-S15 : Pitch 0.5mm, 25pin, Same Side, Length 15cm
• FFC-P05-25P-O15 : Pitch 0.5mm, 25pin, Opposite Side, Length 15cm
• FFC-P05-26P-S15 : Pitch 0.5mm, 26pin, Same Side, Length 15cm
• FFC-P05-26P-O15 : Pitch 0.5mm, 26pin, Opposite Side, Length 15cm
• FFC-P05-28P-S15 : Pitch 0.5mm, 28pin, Same Side, Length 15cm
• FFC-P05-28P-O15 : Pitch 0.5mm, 28pin, Opposite Side, Length 15cm
• FFC-P05-30P-S15 : Pitch 0.5mm, 30pin, Same Side, Length 15cm
• FFC-P05-30P-O15 : Pitch 0.5mm, 30pin, Opposite Side, Length 15cm
• FFC-P05-32P-S15 : Pitch 0.5mm, 32pin, Same Side, Length 15cm
• FFC-P05-32P-O15 : Pitch 0.5mm, 32pin, Opposite Side, Length 15cm
• FFC-P05-34P-S10 : Pitch 0.5mm, 34pin, Same Side, Length 15cm
• FFC-P05-34P-O15 : Pitch 0.5mm, 34pin, Opposite Side, Length 15cm
• FFC-P05-35P-S15 : Pitch 0.5mm, 31pin, Same Side, Length 15cm
• FFC-P05-35P-O15 : Pitch 0.5mm, 31pin, Opposite Side, Length 15cm
• FFC-P05-36P-S15 : Pitch 0.5mm, 36pin, Same Side, Length 15cm
• FFC-P05-36P-O15 : Pitch 0.5mm, 36pin, Opposite Side, Length 15cm
• FFC-P05-40P-S15 : Pitch 0.5mm, 40pin, Same Side, Length 15cm
• FFC-P05-40P-O15 : Pitch 0.5mm, 40pin, Opposite Side, Length 15cm
• FFC-P05-45P-S15 : Pitch 0.5mm, 45pin, Same Side, Length 15cm
• FFC-P05-45P-O15 : Pitch 0.5mm, 45pin, Opposite Side, Length 15cm
• FFC-P05-50P-S15 : Pitch 0.5mm, 50pin, Same Side, Length 15cm
• FFC-P05-50P-O15 : Pitch 0.5mm, 50pin, Opposite Side, Length 15cm
• FFC-P05-60P-S15 : Pitch 0.5mm, 60pin, Same Side, Length 15cm
• FFC-P05-60P-O15 : Pitch 0.5mm, 60pin, Opposite Side, Length 15cm

Package Content :

• 1 X AWM 20624 80C 60V VW-1 FFC P 0.5 mm Pitch 150mm

(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)
