FFC 1.25mm Pitch 300mm Long Flex Flat Cable 20624 Reverse Forward Side 30cm

Flexible Flat Cable Spare Parts for Notebook / Game Console / Camera and more devices.

We carry Flexible Flat Flex FFC Spare part cables at different pin for 1.25mm pitch, 300mm length / Forward  & Reverse direction.

Features :

• FFC at Pitch 1.25mm
• Length: 30cm
• Number of Conductors: Selectable

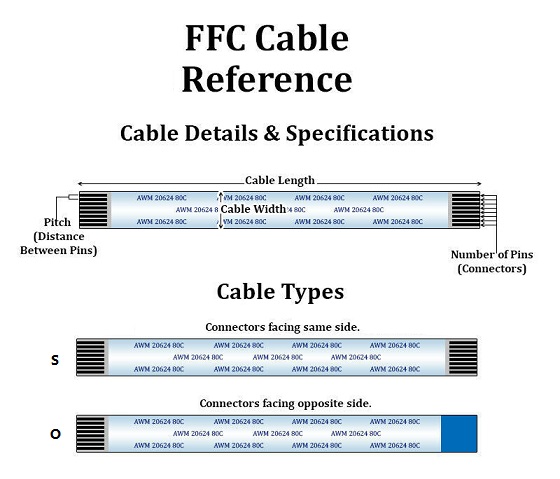

• Connector Facing, SAME : the contacts on two terminals are on the same side
• Connector Facing, OPPOSITE : the contacts on two terminals are on the opposite side

Models :

• FFC-P125-4P-S30 : Pitch 1.25mm, 4pin, Same Side, Length 30cm
• FFC-P125-4P-O30 : Pitch 1.25mm, 4pin, Opposite Side, Length 30cm
• FFC-P125-5P-S30 : Pitch 1.25mm, 5pin, Same Side, Length 30cm
• FFC-P125-5P-O30 : Pitch 1.25mm, 5pin, Opposite Side, Length 30cm
• FFC-P125-6P-S30 : Pitch 1.25mm, 6pin, Same Side, Length 30cm
• FFC-P125-6P-O30 : Pitch 1.25mm, 6pin, Opposite Side, Length 30cm
• FFC-P125-7P-S30 : Pitch 1.25mm, 7pin, Same Side, Length 30cm
• FFC-P125-7P-O30 : Pitch 1.25mm, 7pin, Opposite Side, Length 30cm
• FFC-P125-8P-S30 : Pitch 1.25mm, 8pin, Same Side, Length 30cm
• FFC-P125-8P-O30 : Pitch 1.25mm, 8pin, Opposite Side, Length 30cm
• FFC-P125-9P-S30 : Pitch 1.25mm, 9pin, Same Side, Length 30cm
• FFC-P125-9P-O30 : Pitch 1.25mm, 9pin, Opposite Side, Length 30cm
• FFC-P125-10P-S30 : Pitch 1.25mm, 10pin, Same Side, Length 30cm
• FFC-P125-10P-O30 : Pitch 1.25mm, 10pin, Opposite Side, Length 30cm
• FFC-P125-11P-S30 : Pitch 1.25mm, 11pin, Same Side, Length 30cm
• FFC-P125-11P-O30 : Pitch 1.25mm, 11pin, Opposite Side, Length 30cm
• FFC-P125-12P-S30 : Pitch 1.25mm, 12pin, Same Side, Length 30cm
• FFC-P125-12P-O30 : Pitch 1.25mm, 12pin, Opposite Side, Length 30cm
• FFC-P125-13P-S30 : Pitch 1.25mm, 13pin, Same Side, Length 30cm
• FFC-P125-13P-O30 : Pitch 1.25mm, 13pin, Opposite Side, Length 30cm

• FFC-P125-14P-S30 : Pitch 1.25mm, 14pin, Same Side, Length 30cm
• FFC-P125-14P-O30 : Pitch 1.25mm, 14pin, Opposite Side, Length 30cm
• FFC-P125-15P-S30 : Pitch 1.25mm, 15pin, Same Side, Length 30cm
• FFC-P125-15P-O30 : Pitch 1.25mm, 15pin, Opposite Side, Length 30cm
• FFC-P125-16P-S30 : Pitch 1.25mm, 16pin, Same Side, Length 30cm
• FFC-P125-16P-O30 : Pitch 1.25mm, 16pin, Opposite Side, Length 30cm
• FFC-P125-17P-S30 : Pitch 1.25mm, 17pin, Same Side, Length 30cm
• FFC-P125-17P-O30 : Pitch 1.25mm, 17pin, Opposite Side, Length 30cm
• FFC-P125-18P-S30 : Pitch 1.25mm, 18pin, Same Side, Length 30cm
• FFC-P125-18P-O30 : Pitch 1.25mm, 18pin, Opposite Side, Length 30cm
• FFC-P125-19P-S30 : Pitch 1.25mm, 19pin, Same Side, Length 30cm
• FFC-P125-19P-O30 : Pitch 1.25mm, 19pin, Opposite Side, Length 30cm
• FFC-P125-20P-S30 : Pitch 1.25mm, 20pin, Same Side, Length 30cm
• FFC-P125-20P-O30 : Pitch 1.25mm, 20pin, Opposite Side, Length 30cm
• FFC-P125-21P-S30 : Pitch 1.25mm, 21pin, Same Side, Length 30cm
• FFC-P125-21P-O30 : Pitch 1.25mm, 21pin, Opposite Side, Length 30cm
• FFC-P125-22P-S30 : Pitch 1.25mm, 22pin, Same Side, Length 30cm
• FFC-P125-22P-O30 : Pitch 1.25mm, 22pin, Opposite Side, Length 30cm
• FFC-P125-23P-S30 : Pitch 1.25mm, 23pin, Same Side, Length 30cm
• FFC-P125-23P-O30 : Pitch 1.25mm, 23pin, Opposite Side, Length 30cm
• FFC-P125-24P-S30 : Pitch 1.25mm, 24pin, Same Side, Length 30cm
• FFC-P125-24P-O30 : Pitch 1.25mm, 24pin, Opposite Side, Length 30cm
• FFC-P125-25P-S30 : Pitch 1.25mm, 25pin, Same Side, Length 30cm
• FFC-P125-25P-O30 : Pitch 1.25mm, 25pin, Opposite Side, Length 30cm
• FFC-P125-26P-S30 : Pitch 1.25mm, 26pin, Same Side, Length 30cm
• FFC-P125-26P-O30 : Pitch 1.25mm, 26pin, Opposite Side, Length 30cm
• FFC-P125-27P-S30 : Pitch 1.25mm, 27pin, Same Side, Length 30cm
• FFC-P125-27P-O30 : Pitch 1.25mm, 27pin, Opposite Side, Length 30cm
• FFC-P125-28P-S30 : Pitch 1.25mm, 28pin, Same Side, Length 30cm
• FFC-P125-28P-O30 : Pitch 1.25mm, 28pin, Opposite Side, Length 30cm
• FFC-P125-29P-S30 : Pitch 1.25mm, 29pin, Same Side, Length 30cm
• FFC-P125-29P-O30 : Pitch 1.25mm, 29pin, Opposite Side, Length 30cm
• FFC-P125-30P-S30 : Pitch 1.25mm, 30pin, Same Side, Length 30cm
• FFC-P125-30P-O30 : Pitch 1.25mm, 30pin, Opposite Side, Length 30cm
• FFC-P125-32P-S20 : Pitch 1.25mm, 32pin, Same Side, Length 30cm
• FFC-P125-32P-O20 : Pitch 1.25mm, 32pin, Opposite Side, Length 30cm

Package Content :

• 1 X AWM 20624 80C 60V Flexible Flat Cable FFC P 1.25mm Pitch

(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)
