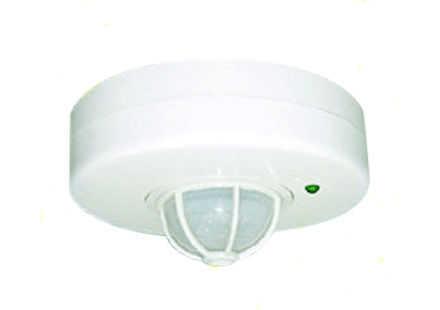

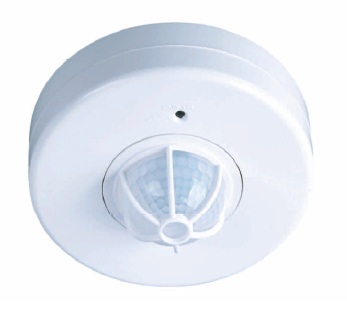

PIR Motion Sensor (Ceiling Mounted)

The idea is to get the light to be switched on when someone walk passing and auto off the lighting for energy saving when there is no one around.

• The product is a new saving-energy switch which gathering automation, convenient safe, saving-energy and practical functions.

• Easy installation and to mount at ceiling and having +-360deg detection. Connecting to your load such as Lighthing, Fan and etc will automatically start/ON the load at once someone enters detection field. It can identify day and night automatically.

Features:

• A new +-360 degree ceiling mount PIR detector, small, compact and lightweight
• Energy Saving–Built in photocell allows automatic operation at dusk and disabled in daylight
• User Friendly 3 adjustments: LUX, TIMER & SENSITIVITY
• Power source/Freq : 220V/AC-240V/AC, 50-60HZ
• Adjustable Time delay : 8+/-3sec, max: 7±2min
• Detection angle: 360 Deg
• Ambient light: <3LUX-daylight
• Working temperature: -20-40deg C

Package Content :

• 1 X Motion Sensor
• 1 X Set of Screw
• 1 X Manual

Some more Motions sensor model : SMB009, SLX-01AL
