USB to RS485 RS422 Cable is the best solution for the communication between PC via USB port to your device with RS-485 / RS422. Compared with RS-232 to RS-485/422 converter, USB to RS-485/422 converter has many advantages for Modem, PDA, GPS, Bar Code, Digitizer, Digital Camera, Label printer & ISDN terminal adapter, etc.

Chipset : FTDI

Features:

• Easy access to serial device for DB9 9pin interface .
• Serial standards: RS485/422, TIA/EIA RS-485/422 standard compliant.
• USB 2.0 specification compliant.
• Baud rate: 300bps---912.6Kbps.
• Receive buffer:256 byte, Transmit buffer: 126 byte.
• FIFO receive and transmit buffers for high data throughput.
• Transmit distance: 0--1200 M. (The longer distance, the lower rate.)
• Connecting capability: 1--32 RS485/422 devices.
• Supports handshake mode.
• Supports remote wake up and power management.
• Auto sense serial signal rate. Zero delay automatic transmit.
• Protection class : 600W surge and 15KV static electricity protection.
• Connection USB : type A Male
• Serial interface and with 5 terminals connection board
• Supports Windows 98/ME/XP/Server 2003/Vista/WIN7/Server 2008, Linux, Mac OS 8 or above & WinCE 4.2 or above

Package Content :

• 1 X USB to RS485 RS422 Adapter Cable
• 1 X Connection Board
• 1 X Driver CD

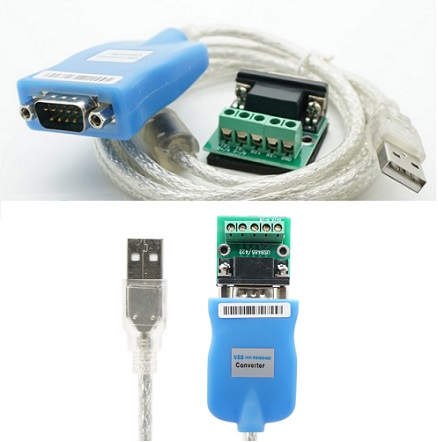

(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)

If you need RS232 to RS422 Converter, Click HD-5101
