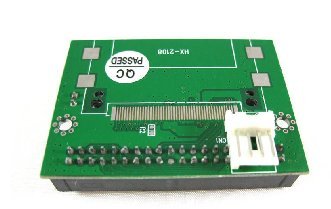

CF to 40 Pin IDE Converter

CF to 40 Pin IDE Converter. The IDE to CF adapter is transparent to the operating system and does not require any drivers. With this adapter, the host PC will identify the inserted CF card as a standard IDE hard disk. As such, you can install any operating systems and the CF card will be bootable, CF card offer the benefit of low power consumption, no acoustic noise, cost efficient and fast read access time, avoid damaging mechanical HDD cause of by turnning on/off power freqently. The Universal 40-pin Male IDE To CF Card Adapter can be used for computer peripheral device factory , industial computer , personal computer. It works with an 40-Pin ATA cable and floppy driver power supply.

Features:

• Compact Flash to IDE adapter provides an alternative for data storage.
• CF Compact Flash to 40 Pin IDE Adapter.
• For connecting a CF to IDE host interface.
• Low power consumption and operating temperature.
• Support CF I card and CF II card Bootable.
• 40-Pin standard male IDE connector.
• 50-Pin standard compact flash socket.
• +5 V floppy disk drive power connector.
• Master or slave mode selection.
• Size: 61mm X 44mm .

Package Content:

• 1 x CF to 40 Pin IDE Adapter

(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)
